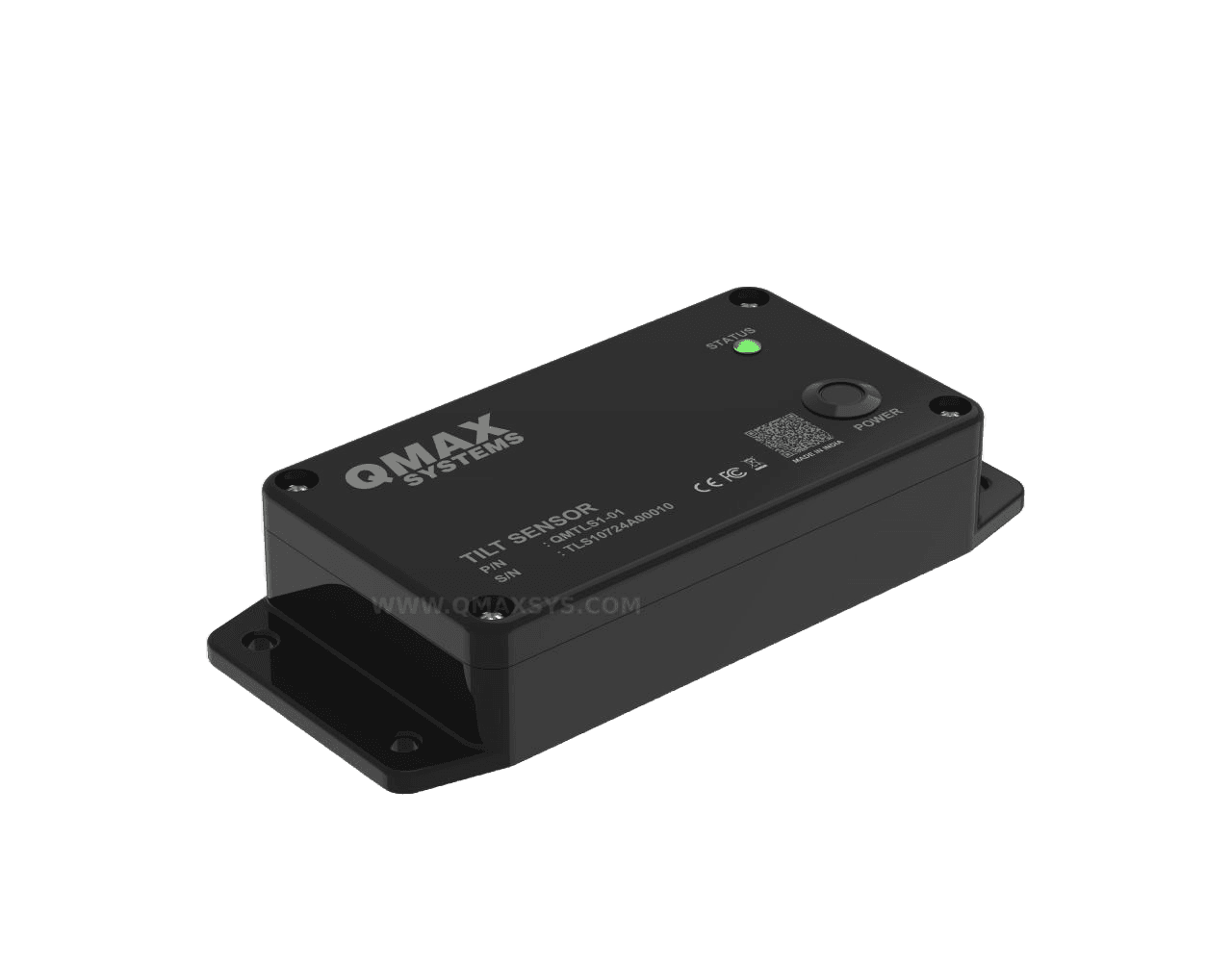

3-Axis Tilt Sensor
Click to zoom
1 / 301Highlights
- Three-axis inclination sensing
- High precision angle detection
- Shock and vibration resistance
- Real-time orientation monitoring
- Industrial communication support
- Low power operation
02Project Overview
High-precision 3-axis tilt sensor designed for industrial monitoring, structural safety, and machine alignment with reliable real-time orientation tracking.
03Key Components
MEMS AccelerometerSignal Conditioning CircuitMicrocontroller UnitRS485 Communication InterfacePower Regulation UnitIndustrial Enclosure
04Salient Features
- Accurate 3-axis tilt angle measurement.
- High vibration and shock tolerance.
- Supports Modbus and RS485 communication.
- Low drift long-term stability.
- Compact industrial-grade housing.
- Low power consumption for remote deployment.
05Scope of Work
01Sensor Hardware Design
02Signal Conditioning Development
03Tilt Calculation Algorithm
04Industrial Protocol Integration
05Mechanical Ruggedization
06Calibration and Validation
