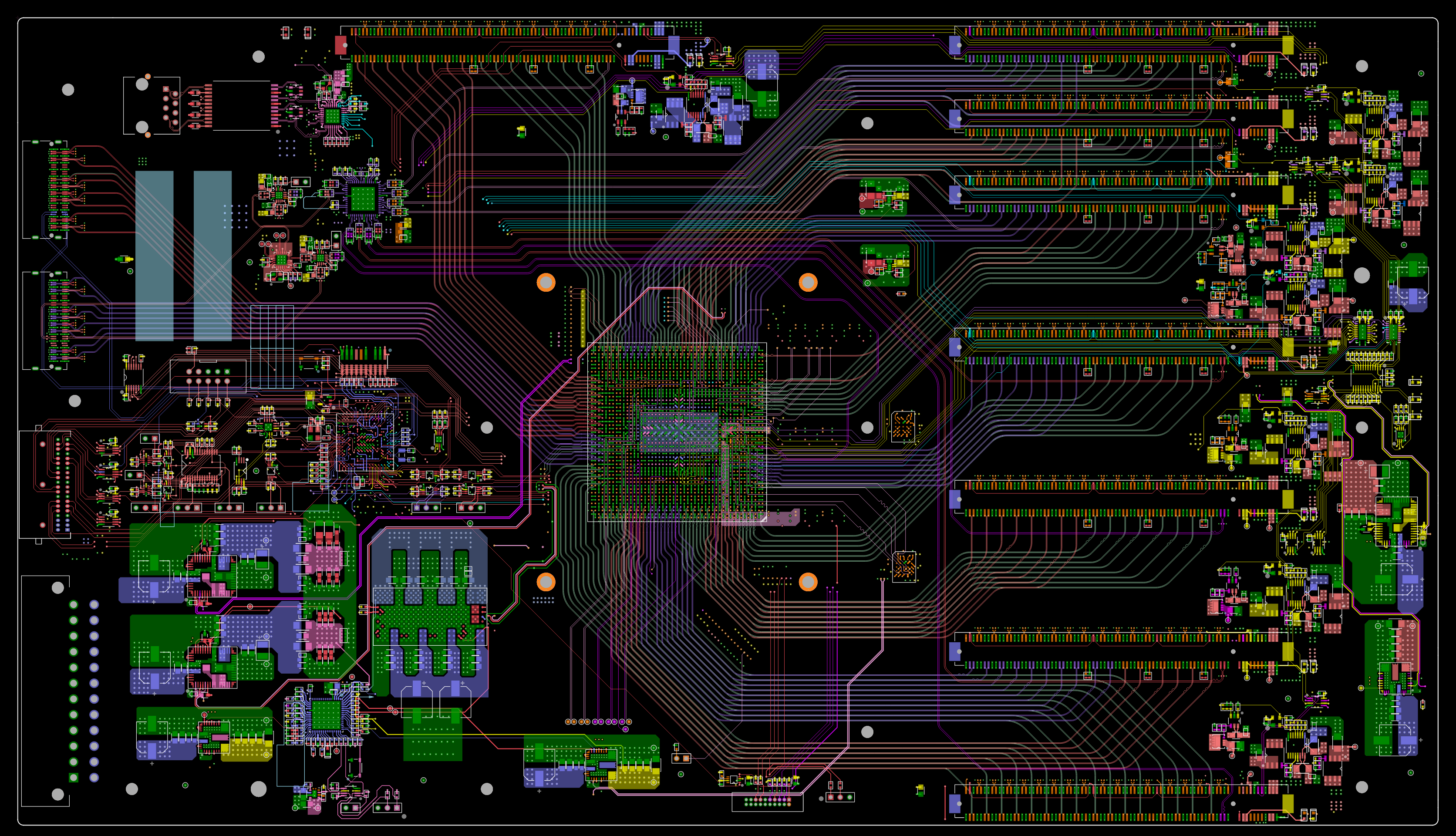

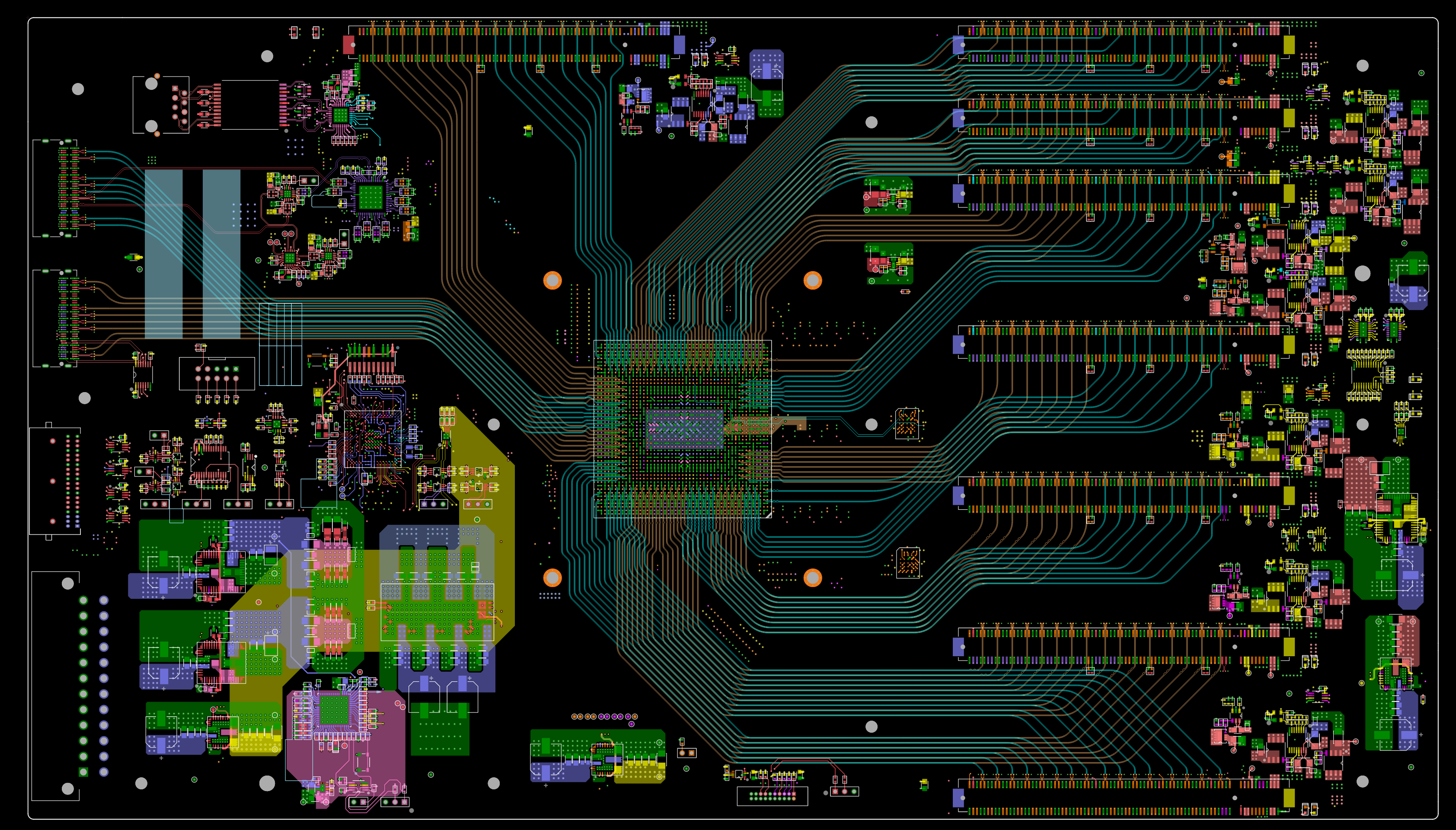

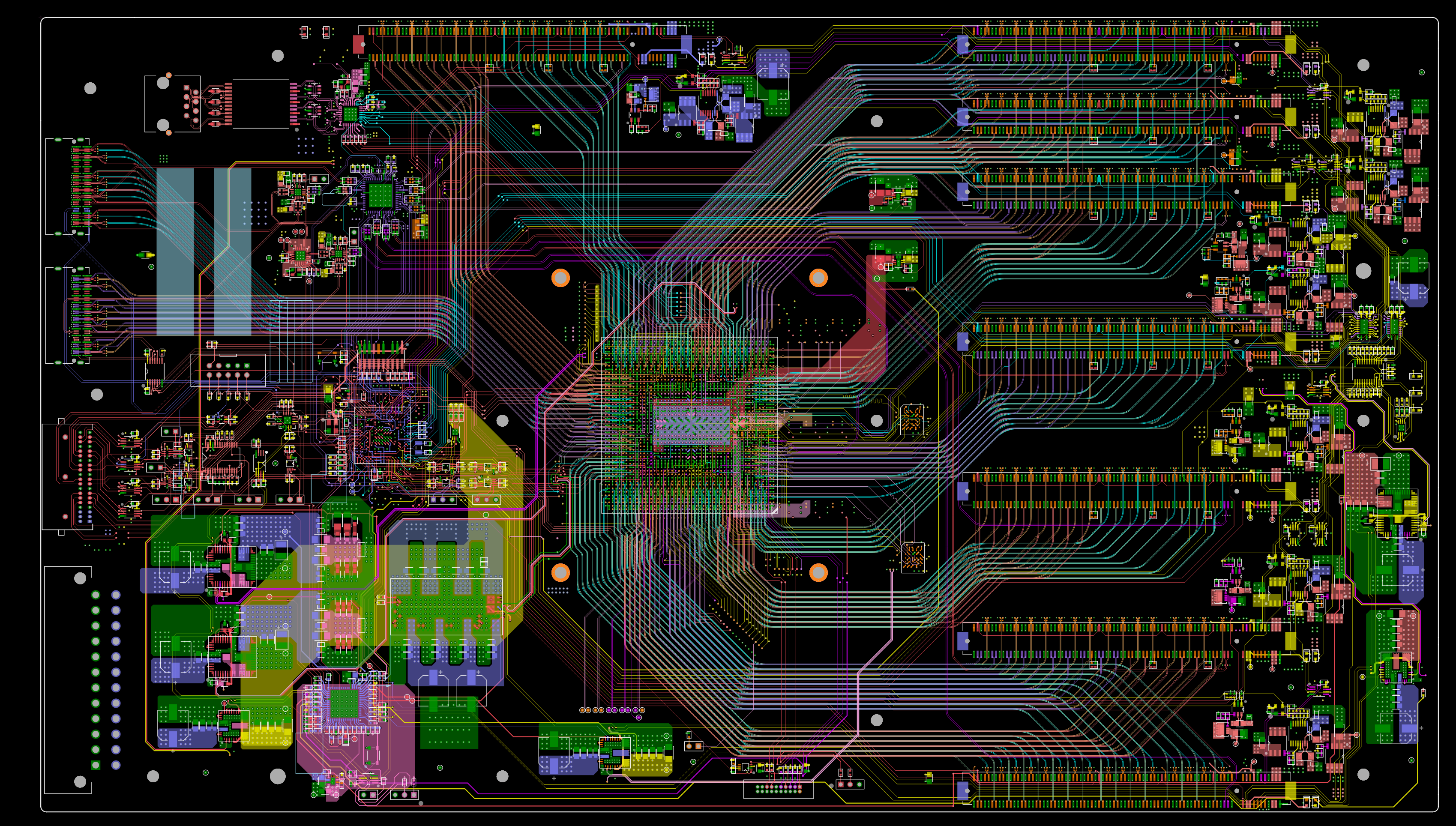

AI GPU Expansion Chassis Motherboard
Click to zoom
1 / 401Highlights
- Medical sensing PCB board
- High-precision analog front-end
- Multi-channel sensor interface
- Signal conditioning circuits
- Low-noise design
- Medical-grade certification path
02Project Overview
Medical sensing PCB featuring high-precision analog signal conditioning for multi-channel biometric and environmental monitoring applications.
03Key Components
Precision instrumentation amplifiersMulti-channel ADCAnalog filter circuitsIsolation transformersShielded signal pathsLow-noise voltage references
04Salient Features
- High-precision analog signal conditioning.
- Multi-channel sensor interface capability.
- Low-noise design for accurate measurements.
- Medical-grade component selection.
05Scope of Work
01Analog Circuit Design
02PCB Layout Design
03Signal Integrity Analysis
04Testing and Validation
05Medical Compliance Review
