Footswitch

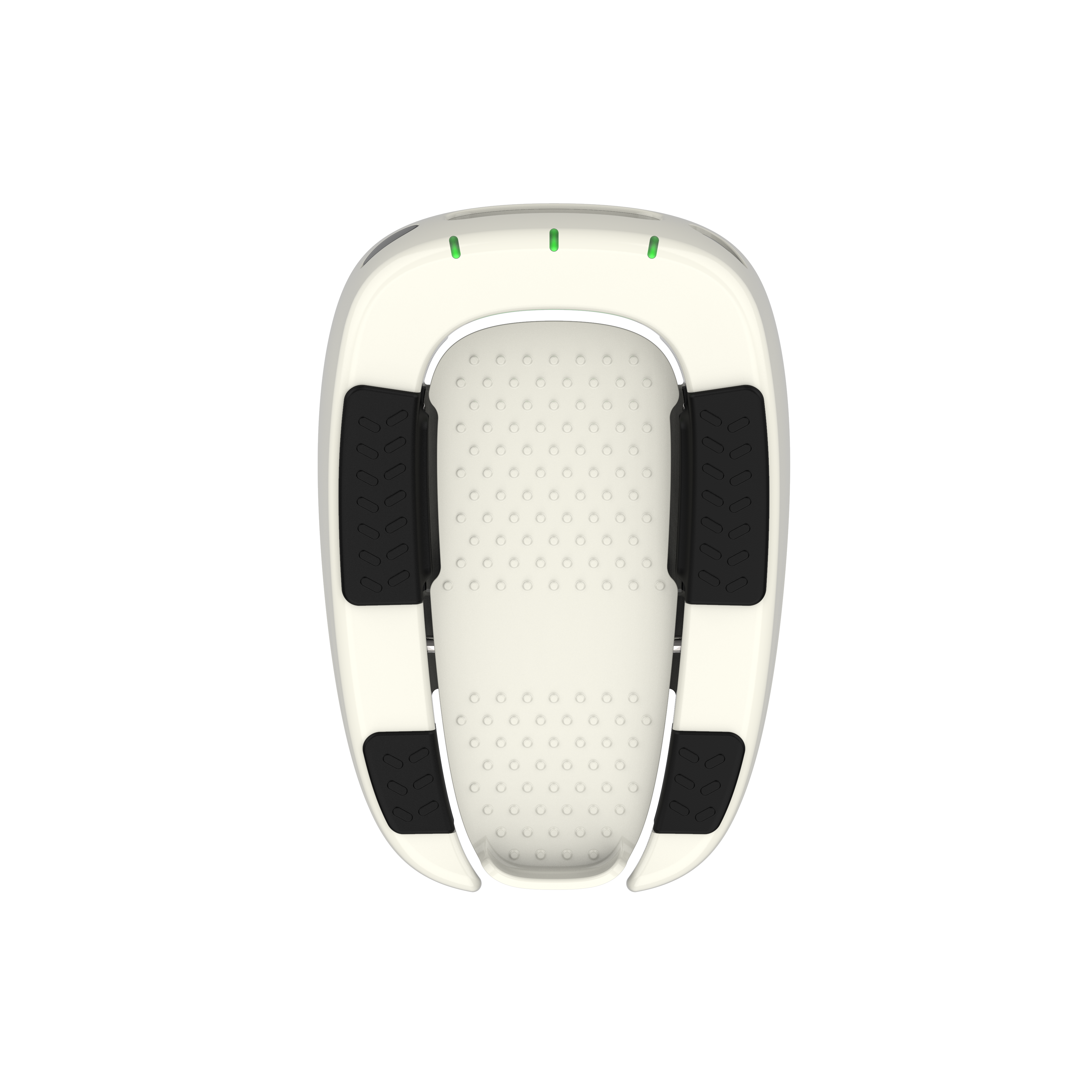

Footswitch - image 1 of 8
Click to zoom
1 / 8
01Highlights
  • Ergonomic industrial footswitch design
  • Durable pedal actuation mechanism
  • Heavy-duty enclosure construction
  • Anti-slip surface design
  • Reliable switching performance
  • Compact and robust assembly
02Project Overview

A mechanically robust industrial footswitch designed for reliable hands-free control in demanding operational environments.

03Key Components
Pedal assemblySpring return mechanismSwitch actuatorProtective enclosureAnti-slip baseCable interface housing
04Salient Features
  • Ergonomic pedal operation
  • High durability for industrial usage
  • Stable anti-slip base structure
  • Reliable long-life switching performance
05Scope of Work
01Concept Design
02Mechanical CAD Design
03Enclosure Development
04Prototype Validation
05Manufacturing Support
