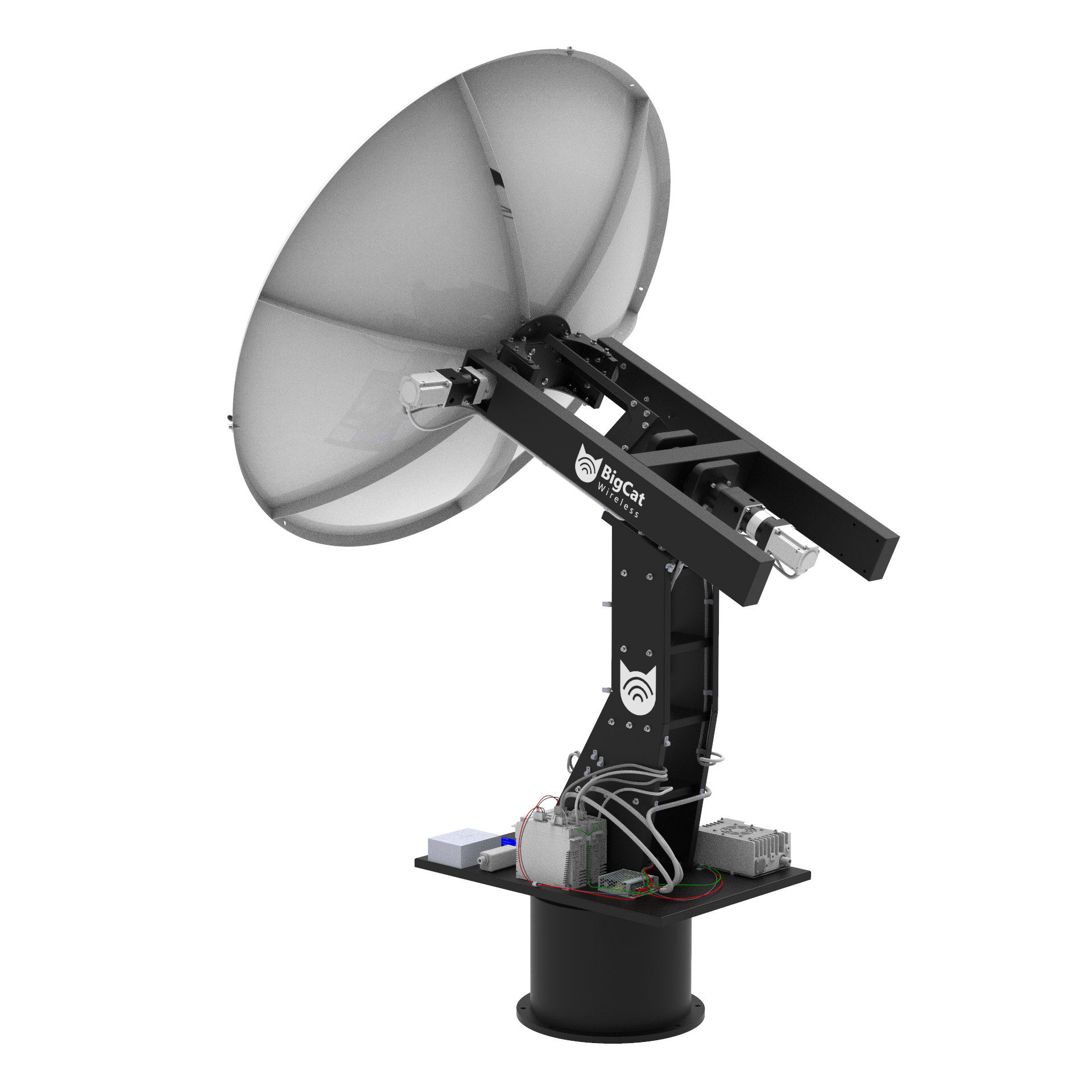

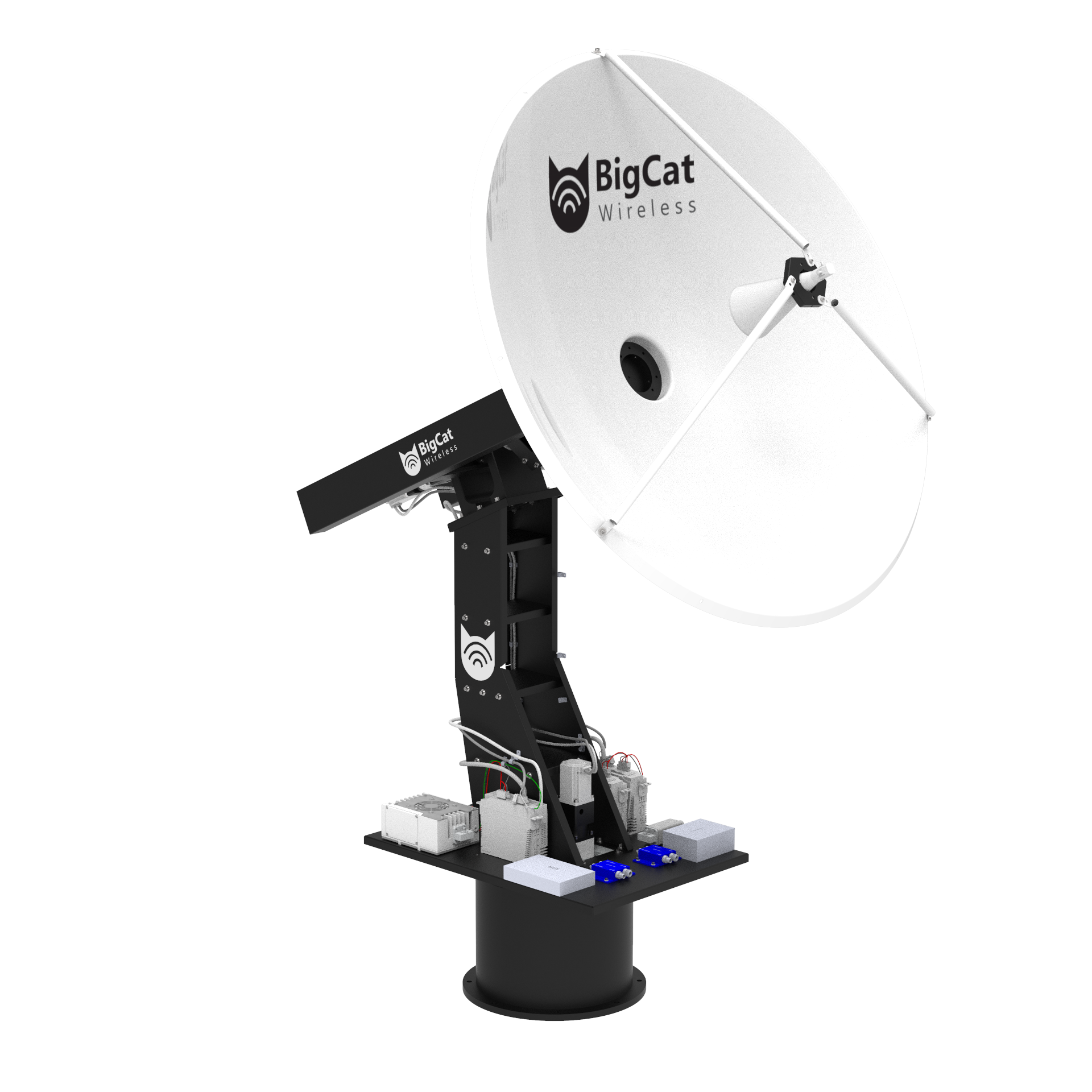

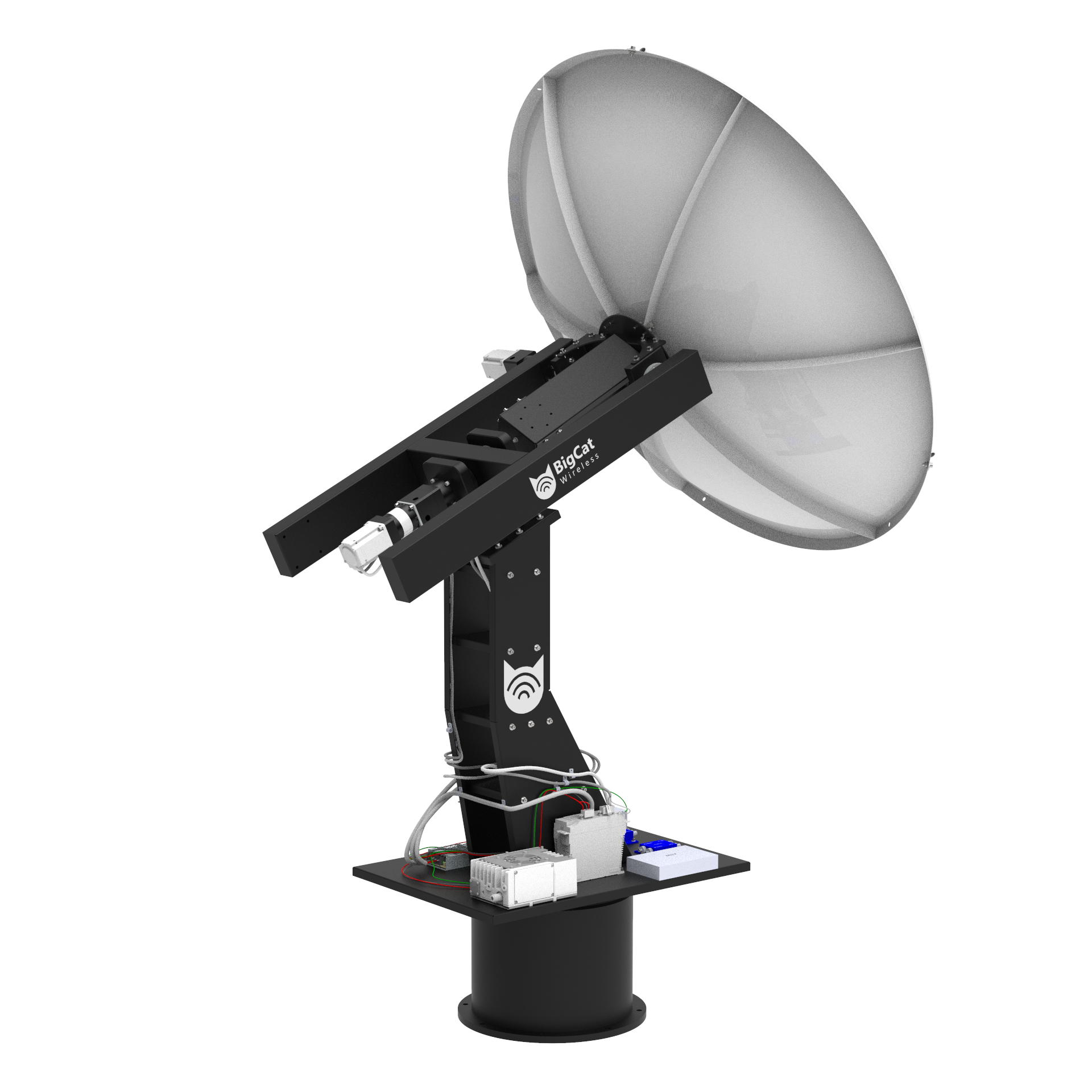

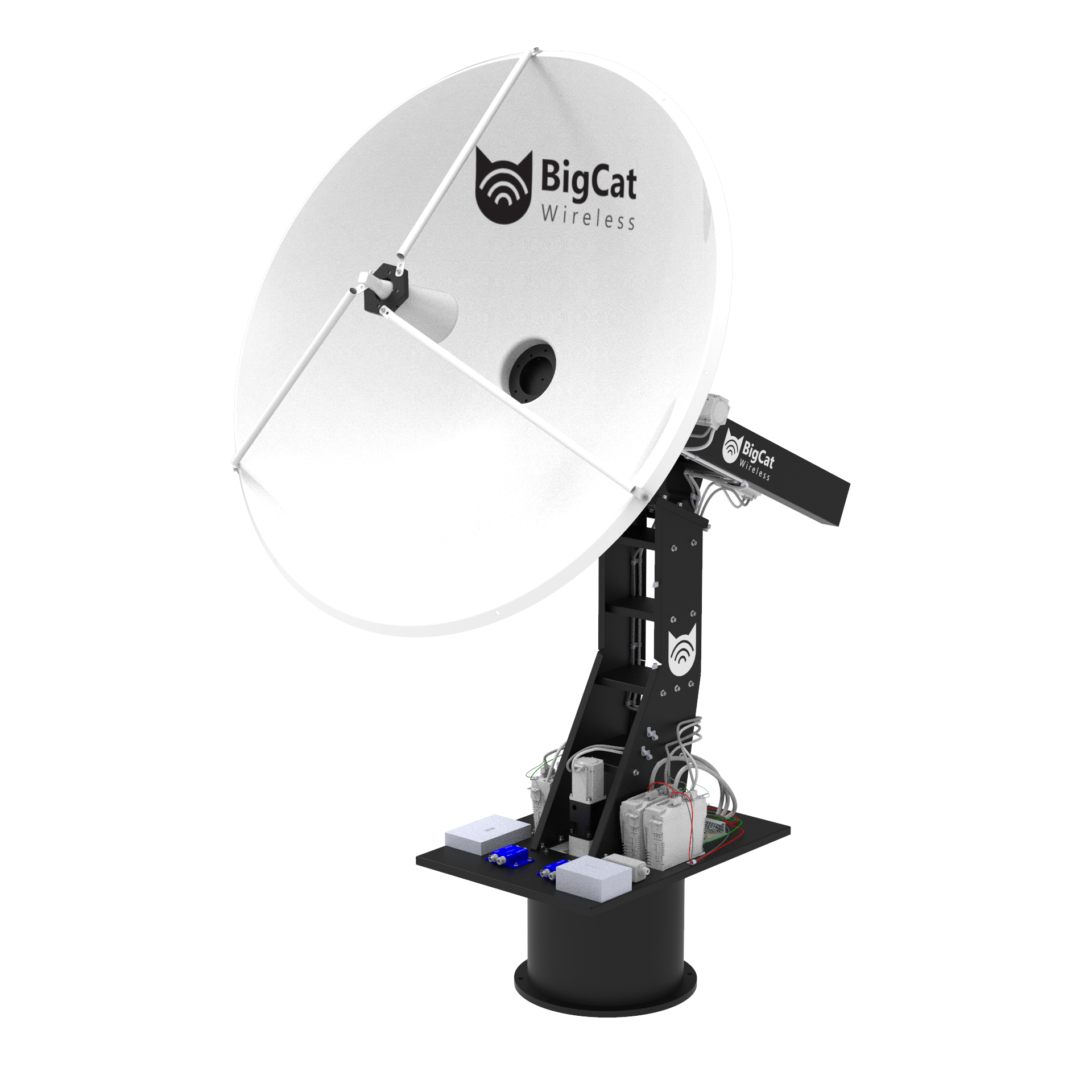

4-Axis Gimbal
Click to zoom
1 / 501Highlights
- 4-axis stabilization mechanism
- Precision rotational joints
- Lightweight structural design
- High dynamic balance performance
- Smooth motion control integration
- Robust mechanical frame
02Project Overview
A precision-engineered 4-axis gimbal system designed for smooth stabilization, dynamic balancing, and high-performance motion control applications.
03Key Components
Rotational joint assembliesMotor mounting bracketsStabilization frameBearing supportsAxis coupling elementsStructural base plate
04Salient Features
- High-precision multi-axis stabilization
- Lightweight and rigid structure
- Smooth rotational motion control
- Reliable mechanical balancing
05Scope of Work
01Mechanical System Design
02CAD Modeling
03Motion Analysis
04Prototype Development
05Assembly Validation
