OBD Device
Click to zoom
1 / 1001Highlights
- Compact automotive enclosure design
- OBD port compatible mechanical architecture
- Injection mold-ready product design
- Ergonomic installation form factor
- Durable automotive-grade housing
- Optimized internal component packaging
02Project Overview

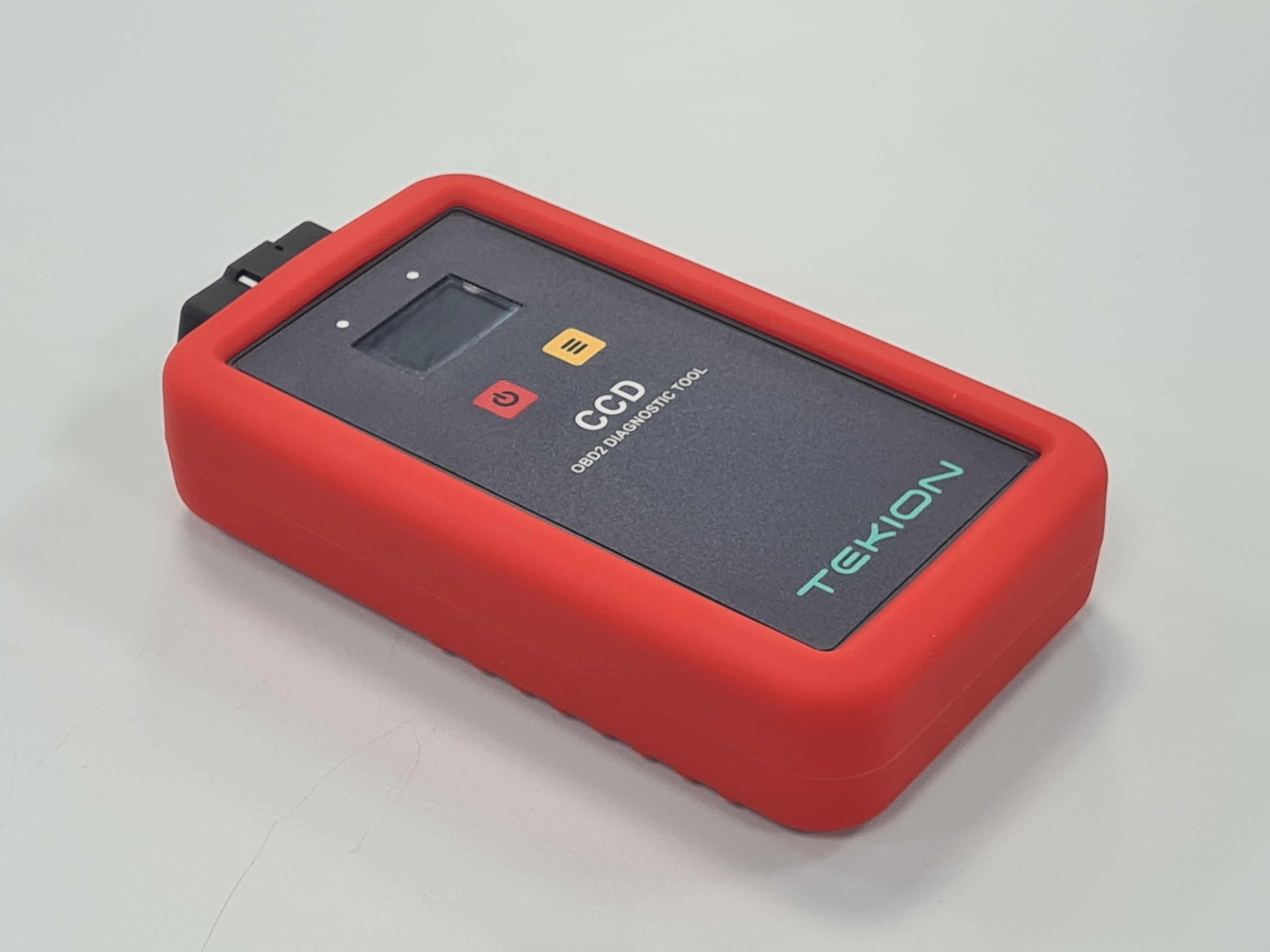

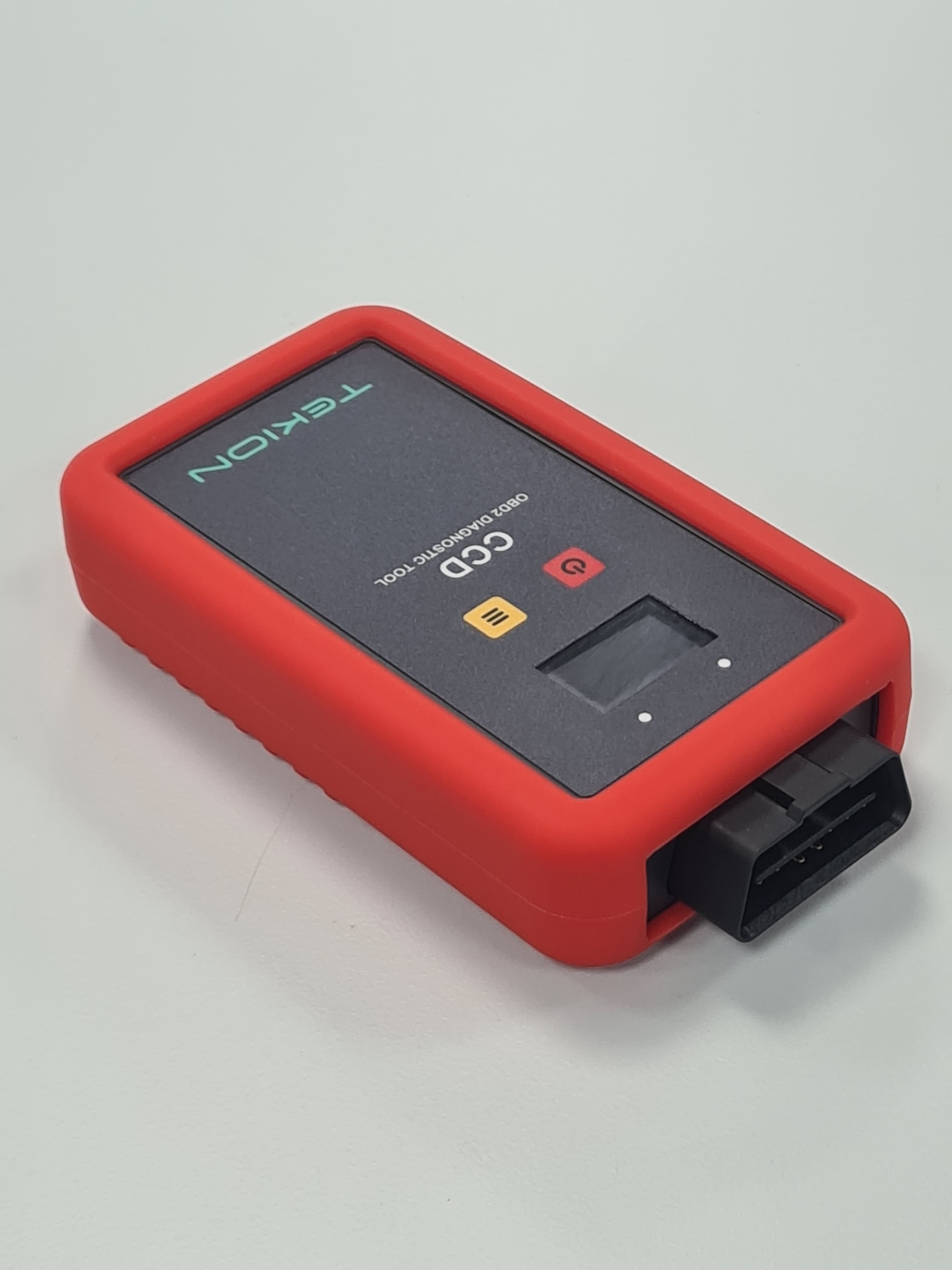

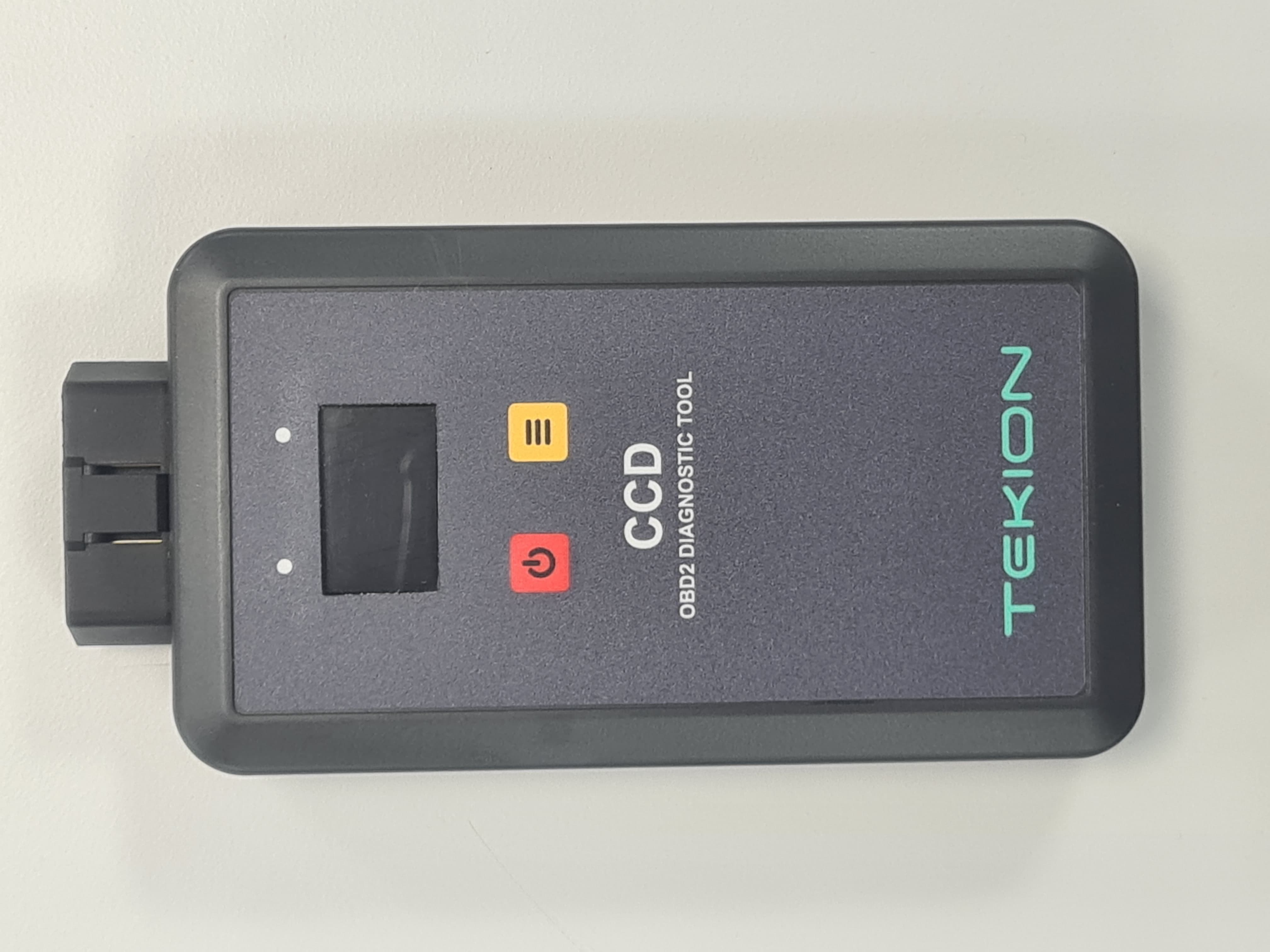

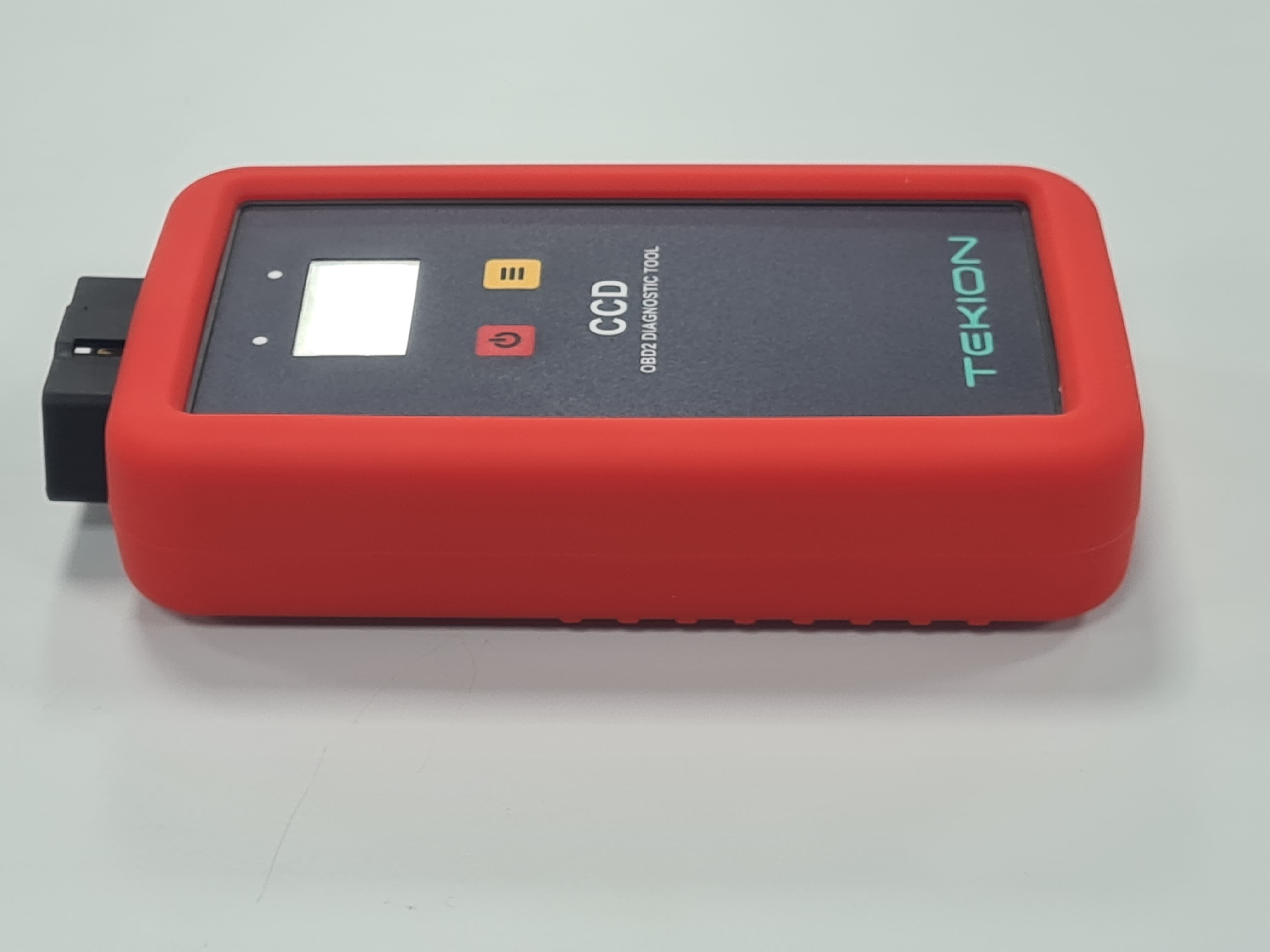

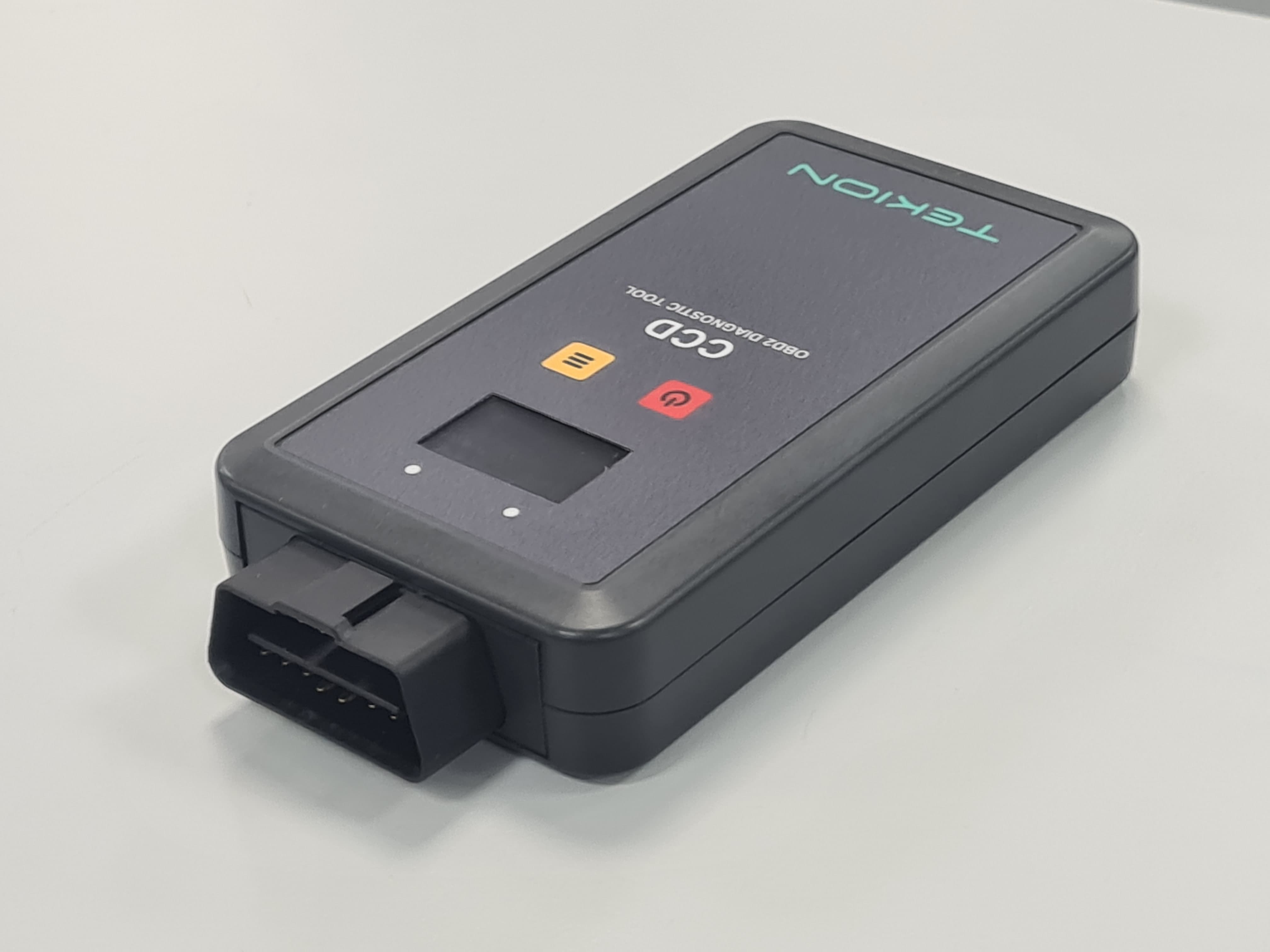

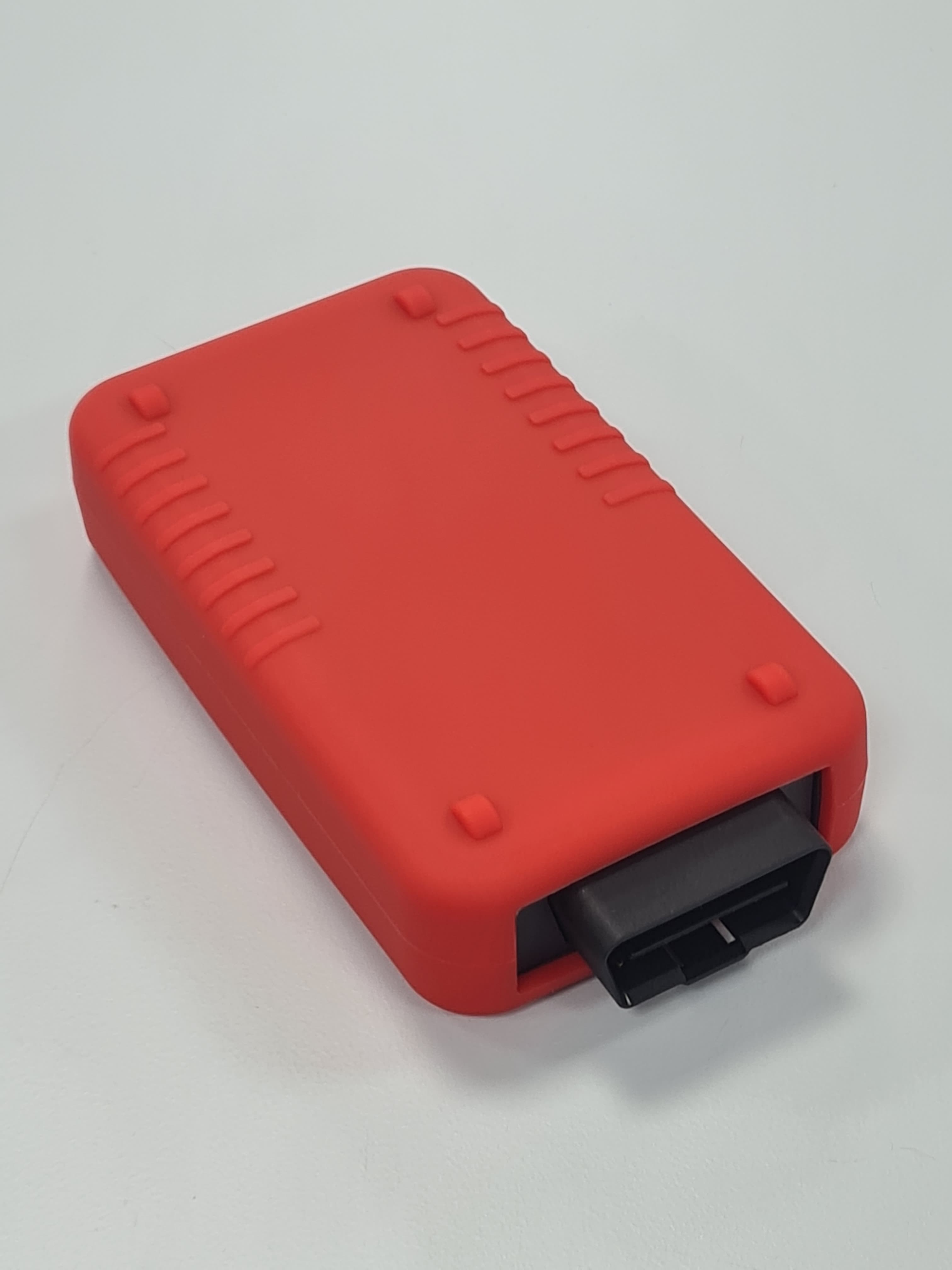

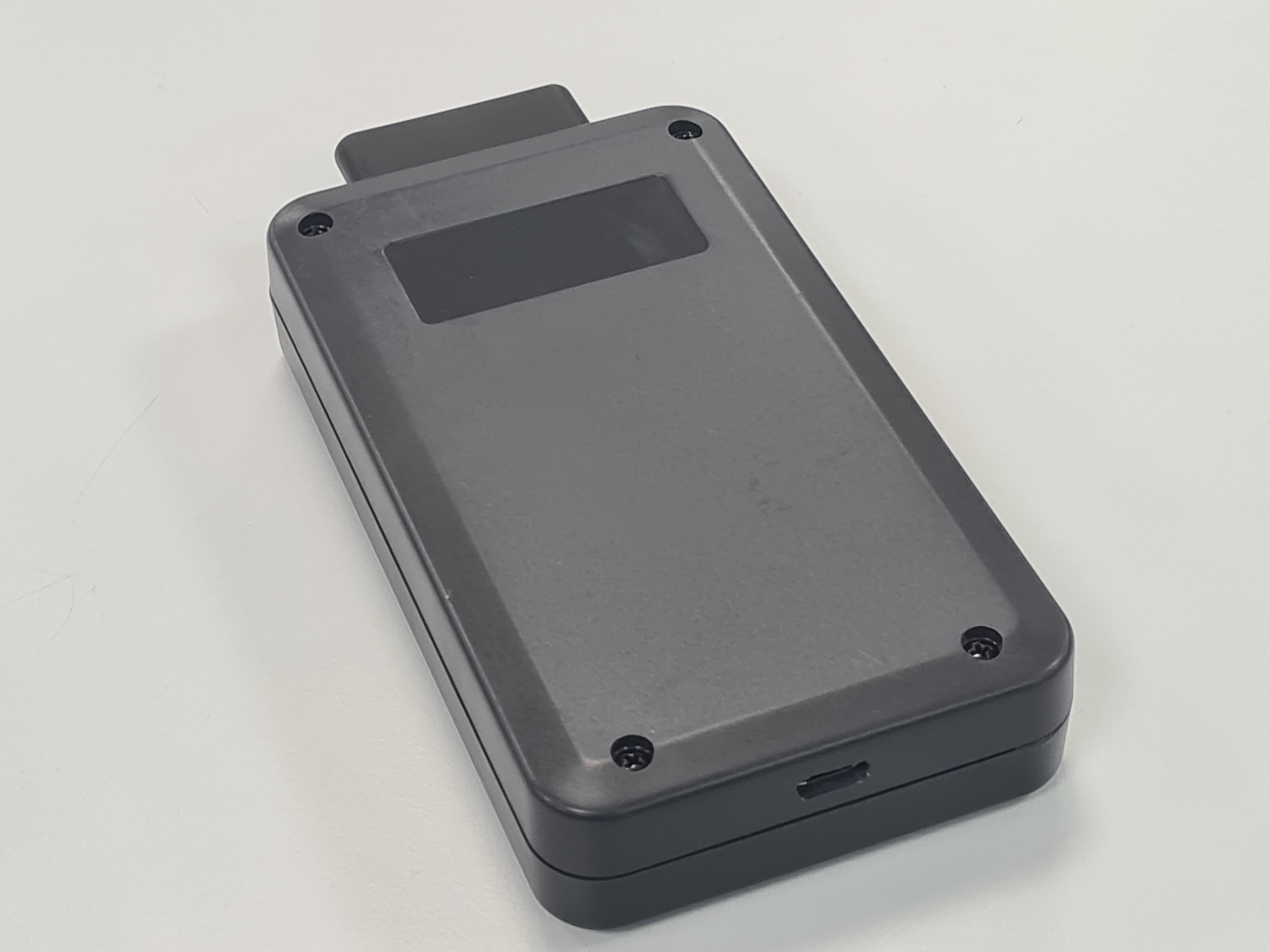

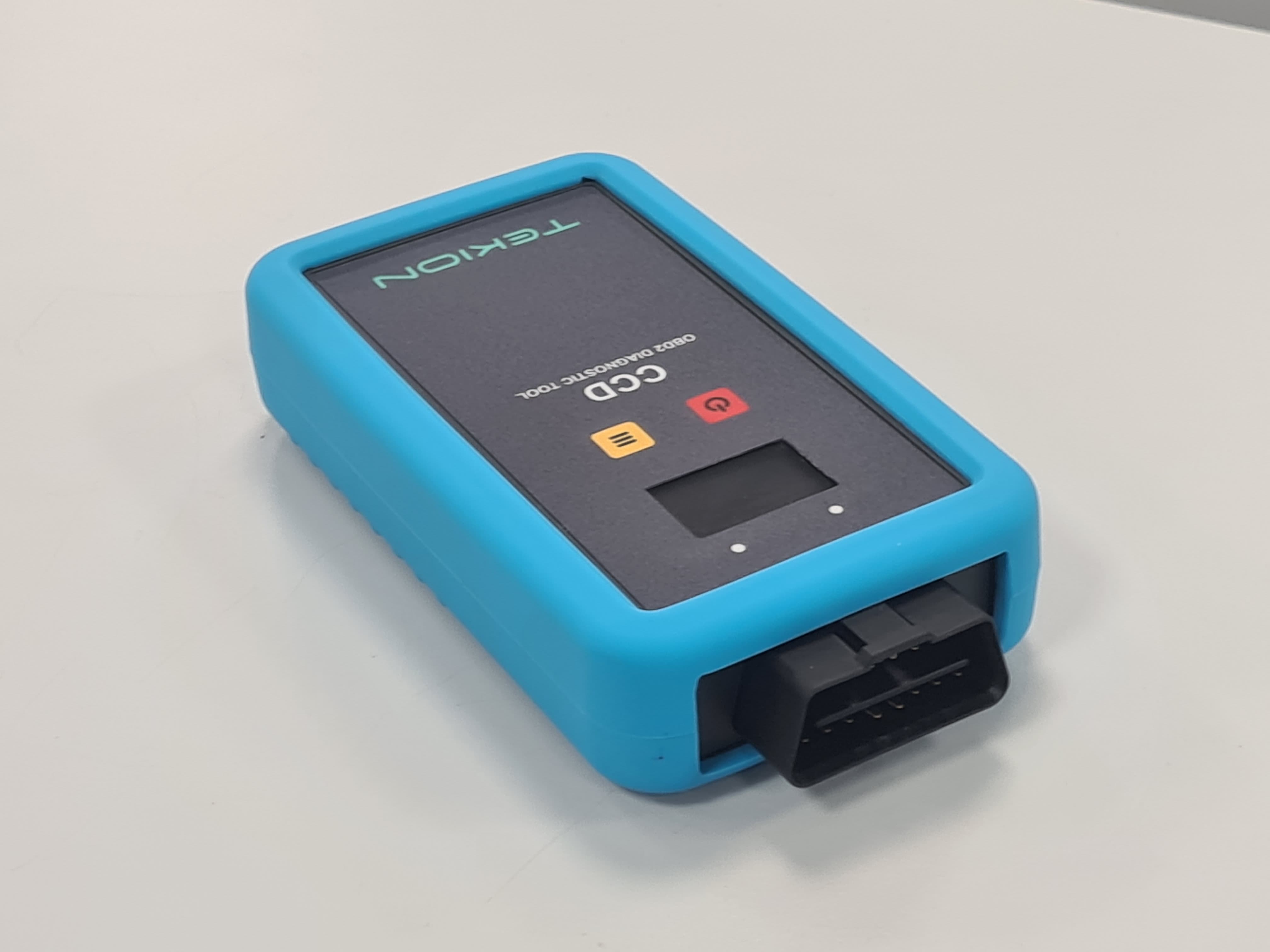

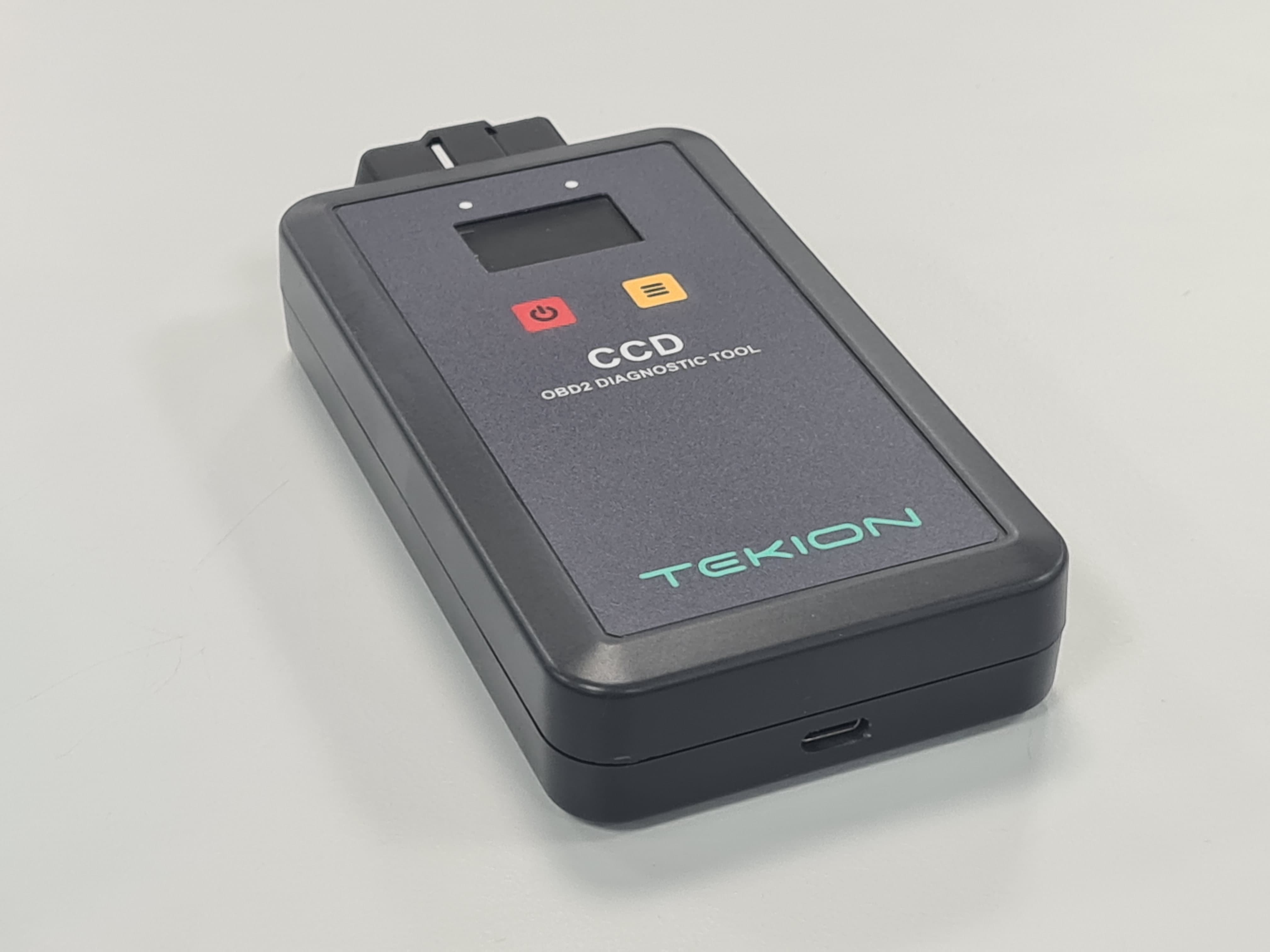

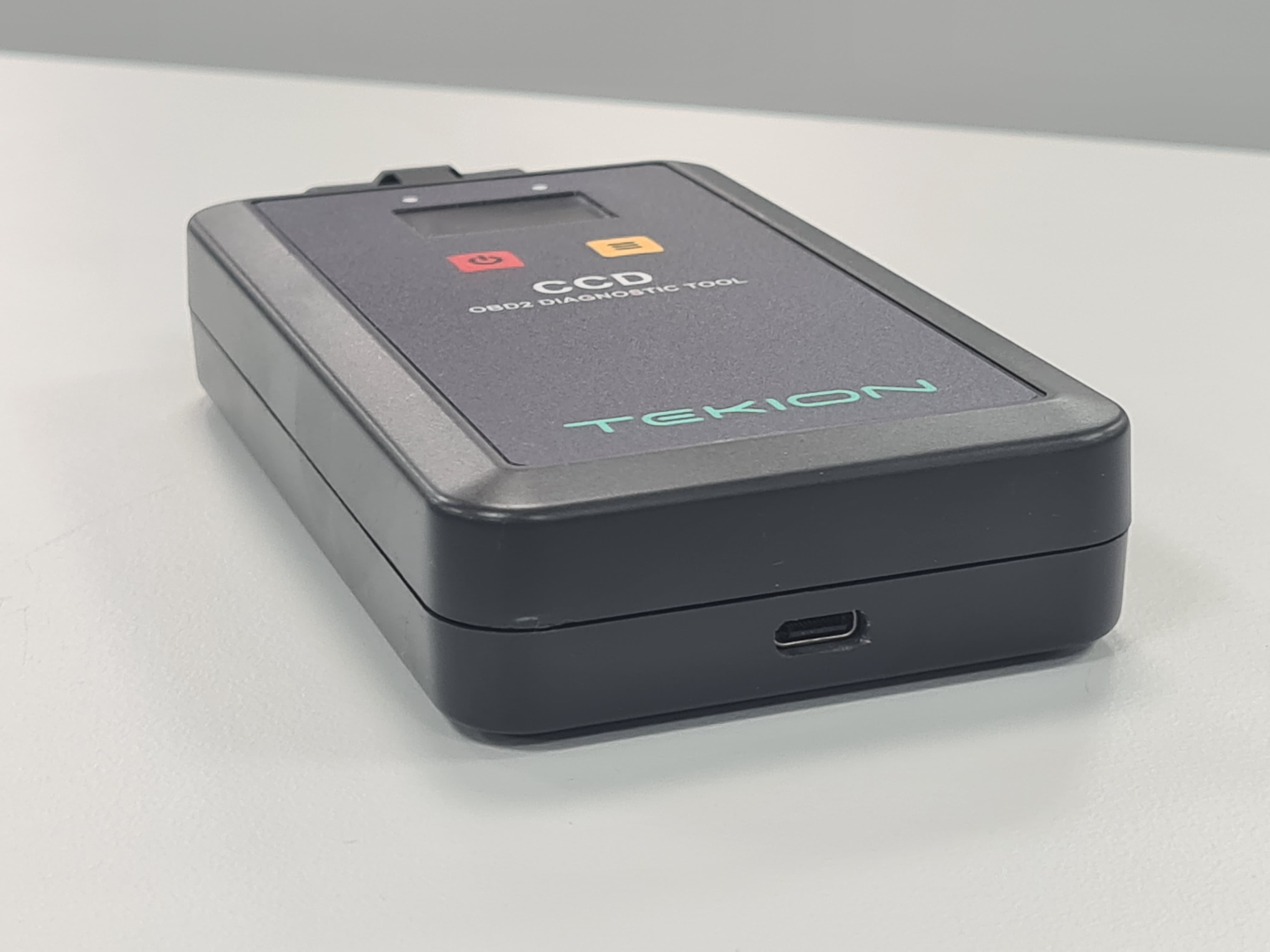

A compact OBD device enclosure engineered for automotive applications, featuring robust construction, ergonomic installation, and optimized packaging for embedded electronics.
03Key Components
OBD connector housingProtective enclosure shellInternal PCB mounting structureSnap-fit assembly featuresCable and connector interfacesAutomotive-grade outer casing
04Salient Features
- Compact plug-and-play design
- Automotive-grade mechanical durability
- Optimized internal space utilization
- Manufacturing-ready enclosure architecture
05Scope of Work
01Industrial Design
02Mechanical Product Design
033D CAD Modeling
04DFM (Design for Manufacturing)
05Prototype Development
