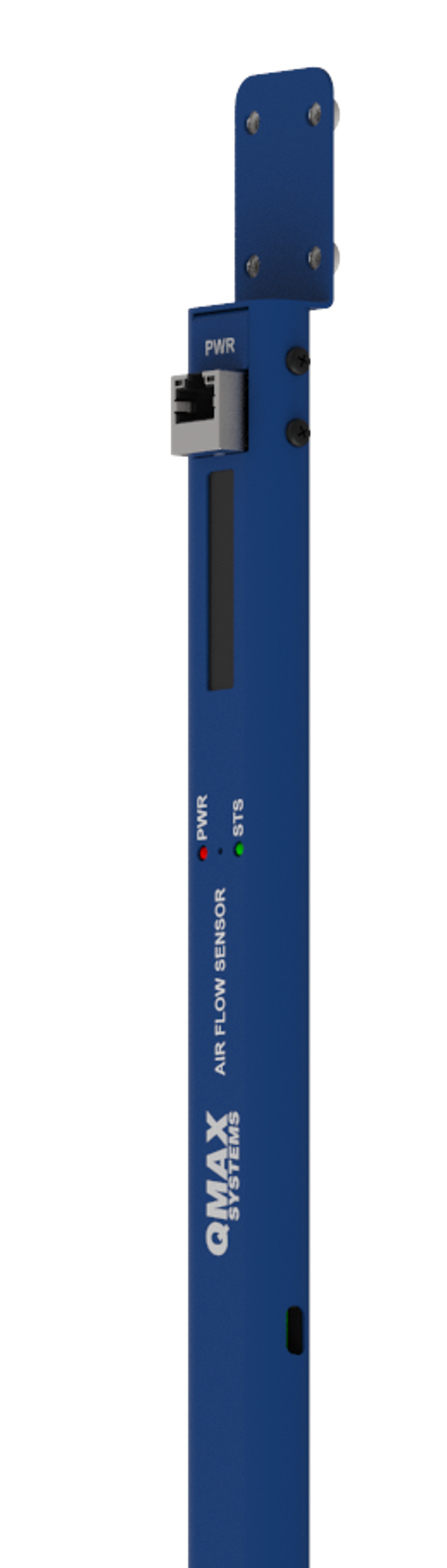

Air Flow Sensor
Click to zoom
1 / 301Highlights
- Precision airflow measurement housing
- Optimized flow channel design
- Compact industrial enclosure
- Sensor mounting integration
- Low-turbulence airflow path
- Robust mechanical construction
02Project Overview
A mechanically engineered air flow sensor assembly designed to provide accurate airflow measurement through optimized flow-channel geometry and robust industrial construction.
03Key Components
Flow sensing chamberAirflow guide channelsSensor mounting structureProtective enclosureConnector interface housingMechanical support frame
04Salient Features
- Optimized airflow path design
- Compact and durable construction
- Reliable sensor integration
- Industrial-grade mechanical robustness
05Scope of Work
01Mechanical Product Design
02CAD Modeling
03Airflow Path Optimization
04Prototype Development
05Design Validation
