Compact Edge Gateway Enclosure
Click to zoom
1 / 301Highlights
- Fanless aluminium heatsink enclosure for passive cooling

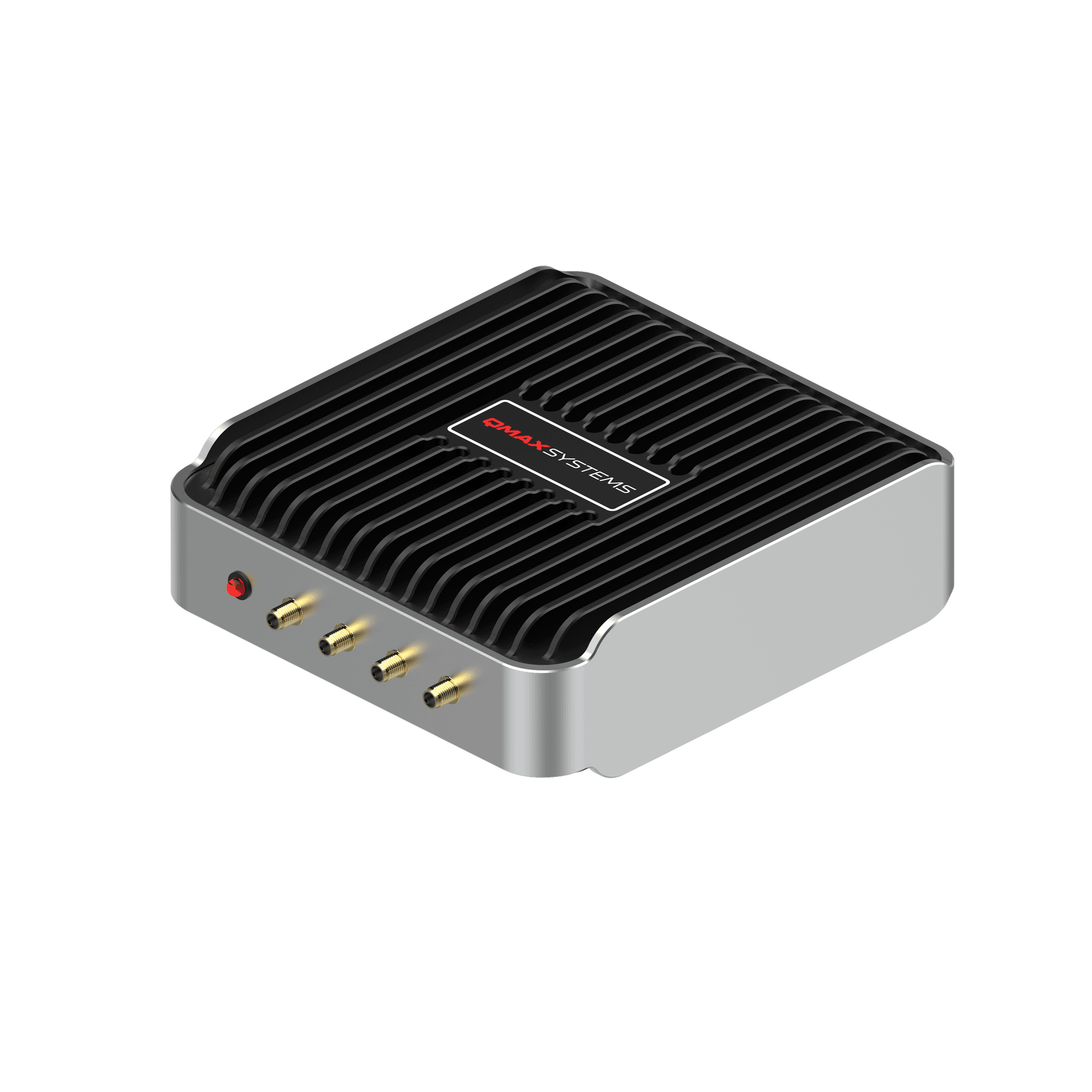

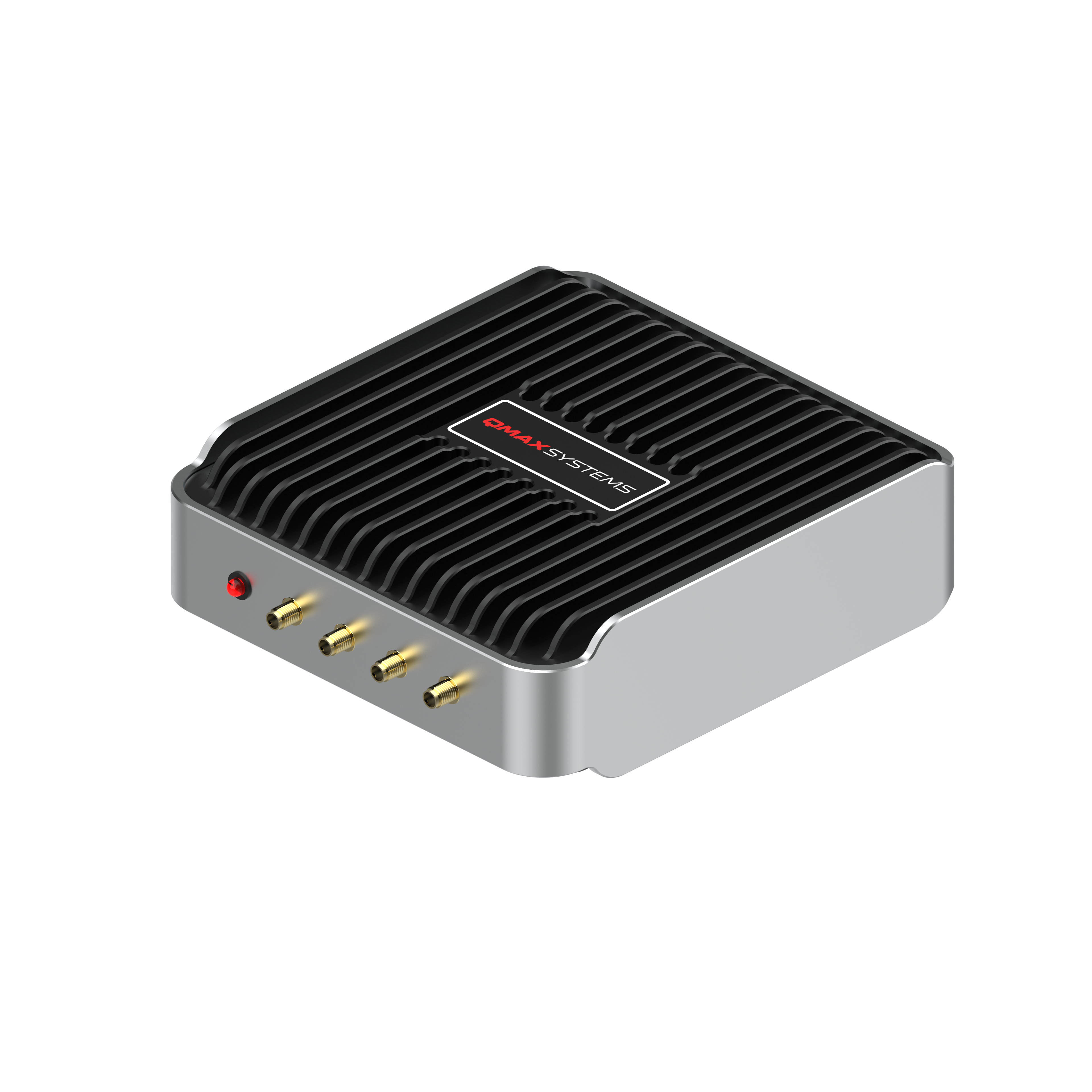

- Compact form factor with multiple SMA antenna ports

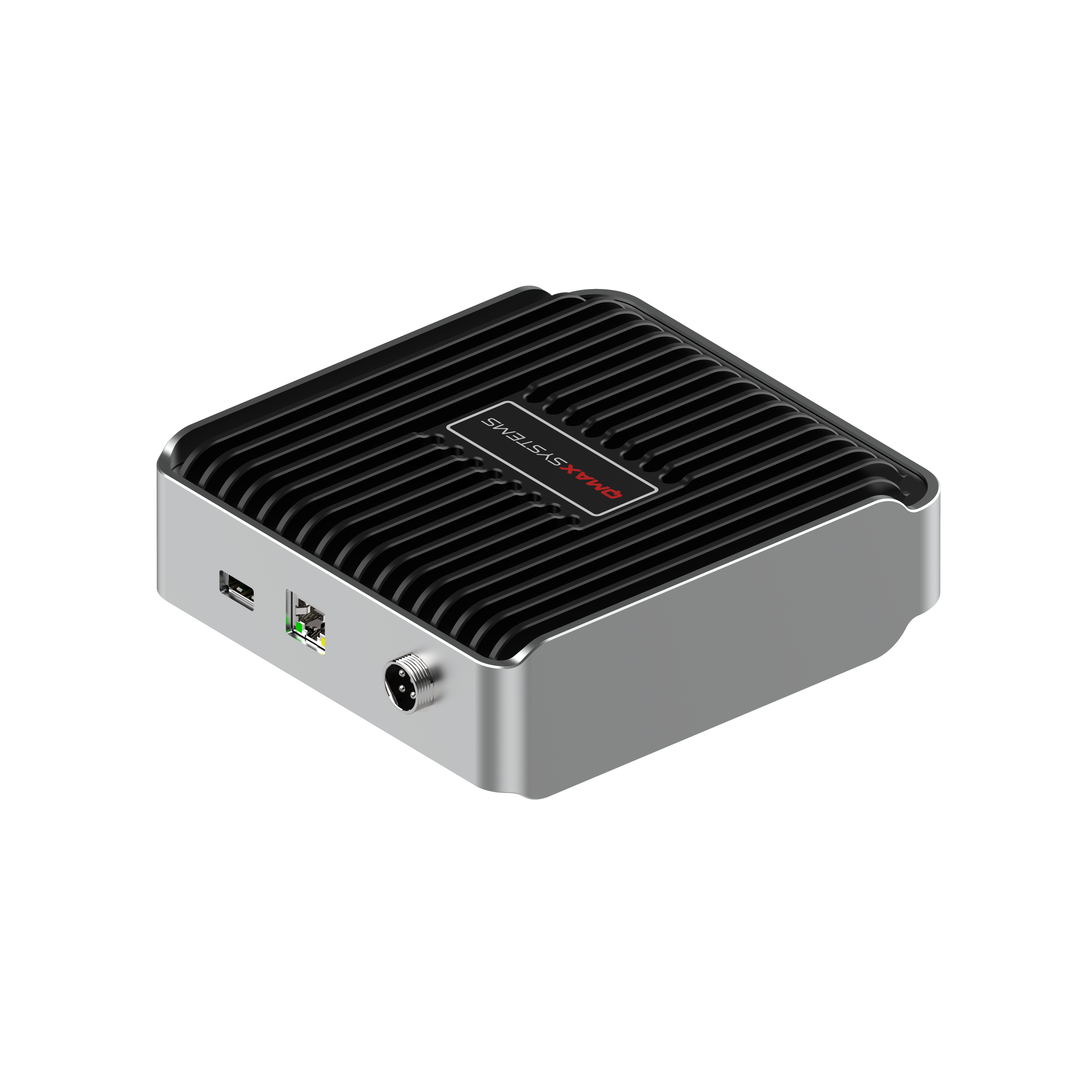

- Integrated Ethernet (RJ45), USB, and M12 connectors
- Finned top cover for thermal management
- Industrial-grade aluminium construction
- Designed for edge computing and IoT gateway applications
02Project Overview
A compact, fanless edge gateway enclosure designed for continuous industrial operation without active cooling. The finned aluminium top cover provides efficient passive heat dissipation, while the silver die-cast body houses multiple SMA antenna connectors, Ethernet, USB, and M12 industrial interfaces. The robust construction and thermal design make it suitable for deployment in harsh environments where reliability and silent operation are critical.
03Key Components
Die-cast aluminium primary enclosure shellFinned heatsink top cover for passive coolingSMA antenna connector arrayRJ45 Ethernet and USB interface portsM12 industrial circular connectorInternal PCB mounting and retention system
04Salient Features
- Fanless passive cooling via finned heatsink top.
- Multiple SMA ports for multi-radio antenna support.
- Integrated Ethernet, USB, and M12 connectivity.
- Compact footprint for space-constrained deployments.
- Industrial-grade aluminium construction.
- Silent operation with no moving parts.
05Scope of Work
01Industrial design concepting and form exploration
02Thermal management and heatsink design
033D CAD enclosure modelling and detailing
04Connector panel layout and I/O planning
05Design-for-manufacture review
06Prototype build and thermal evaluation
