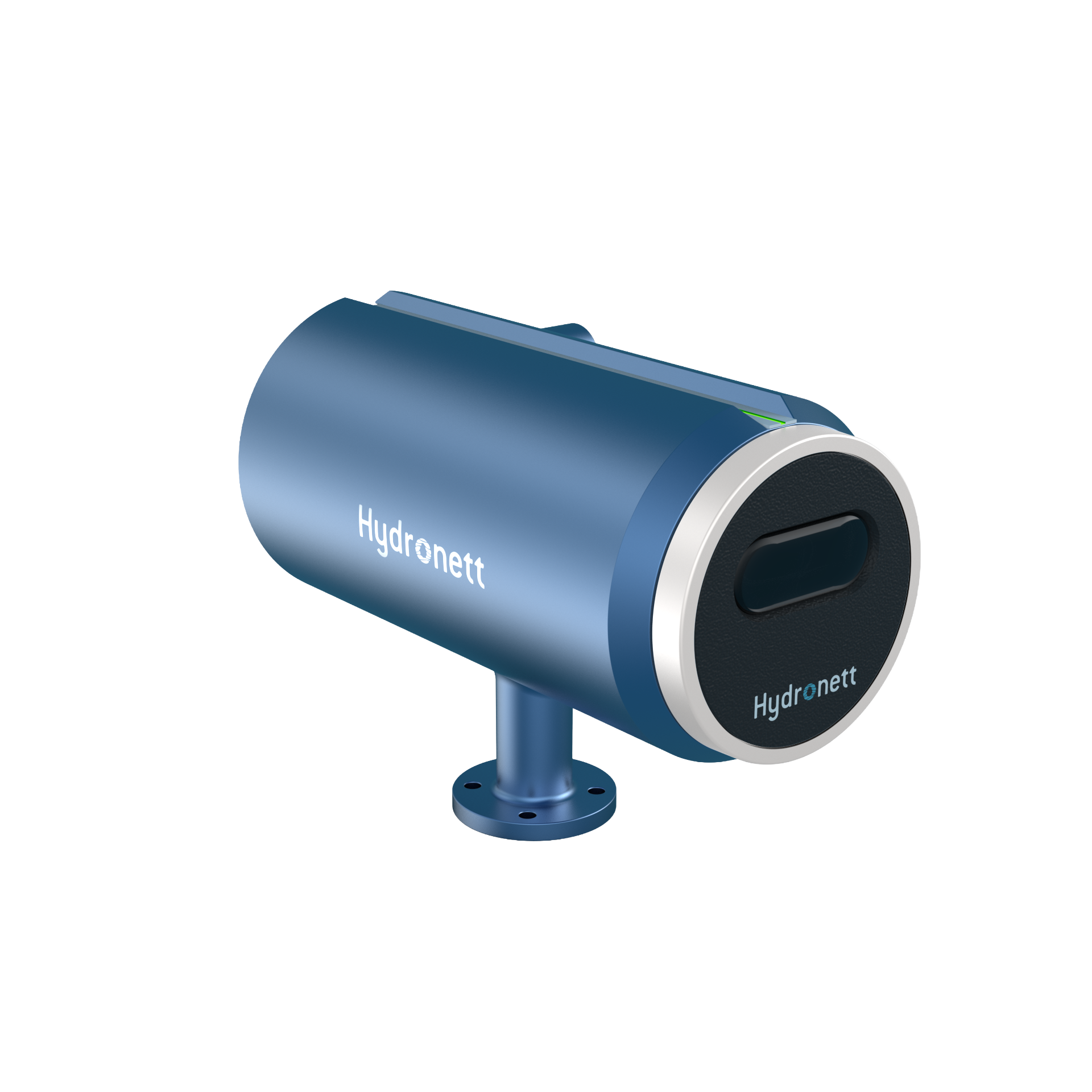

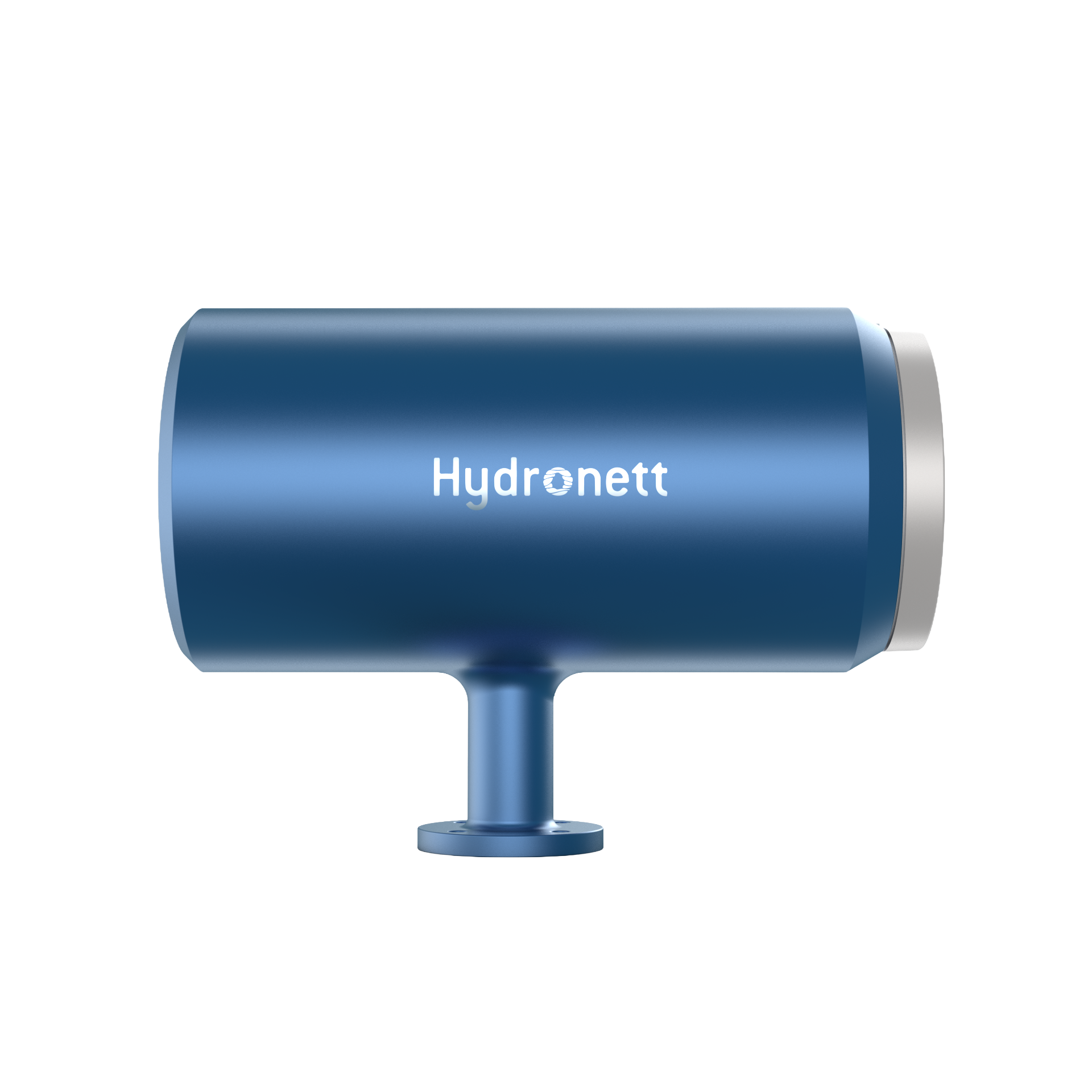

EMF Flow Meter
Click to zoom
1 / 301Highlights
- Compact multi-sensor enclosure
- Tool-free battery access
- Integrated antenna mounting
- Desiccant cartridge support
- IP66 protection rating
- UV-resistant ABS material
02Project Overview
Compact multi-sensor enclosure with tool-free battery access, integrated antenna mounting, and desiccant cartridge support for extended outdoor deployment.
03Key Components
UV-resistant ABS housingSnap-fit battery doorAntenna mounting postDesiccant cartridge pocketMulti-sensor PCB bracketGasket sealing system
04Salient Features
- IP66 protection for outdoor use.
- Tool-free battery replacement.
- Integrated antenna mounting.
- 1-year sealed operation capability.
- UV-stable materials.
05Scope of Work
01Compact Enclosure Design
02Battery Door Mechanism Design
03Antenna Integration
04Gasket and Sealing Design

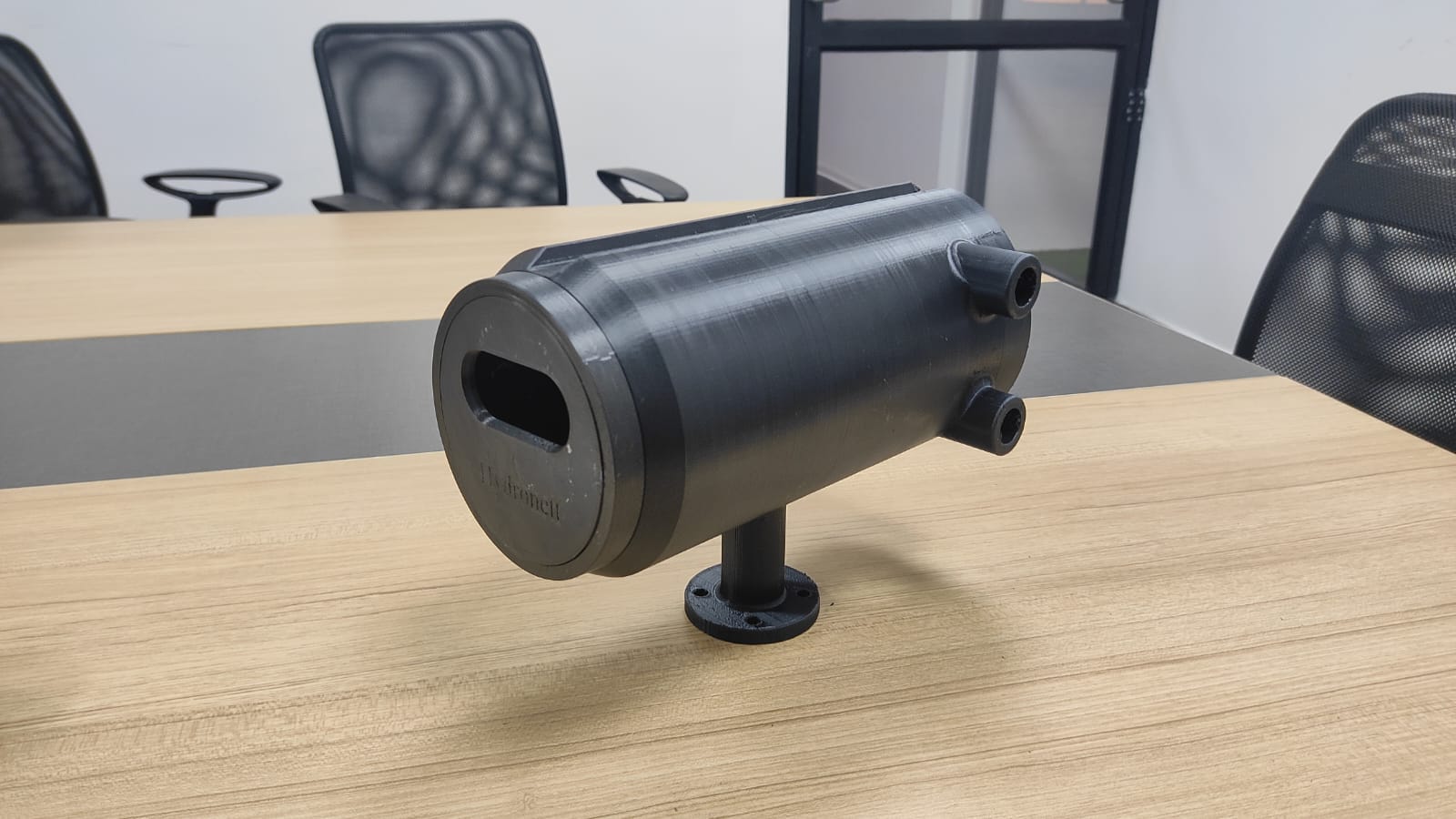

05Prototype and Testing
