Microscopic Camera Control
Click to zoom
1 / 501Highlights
- High-resolution CMOS Image Sensor
- Precision Motor Control for Focus and Zoom
- OLED Status Display
- Hardware / Firmware Design and Development
- USB and Ethernet Streaming Interface
- Compact Enclosure Design
02Project Overview
A microscopic camera control system designed for laboratory and inspection applications. The system drives precision stepper motors for automated focus and zoom adjustment while streaming high-resolution imagery over USB or Ethernet. An on-board OLED display provides real-time status, magnification level, and capture settings. The compact form factor integrates seamlessly with standard microscope mounts.
03Key Components
High-resolution CMOS Image SensorMicrochip PIC MicrocontrollerPrecision Stepper Motor DriversOLED Display Module (96 × 64)USB 3.0 High-speed Interface ICLow-noise LDO Voltage Regulators
04Salient Features
- Automated focus and zoom via precision motor control.
- High-resolution image capture and live streaming.
- OLED display for real-time status and settings.
- USB 3.0 and Ethernet output interfaces.
- Compatible with standard microscope mounts.
- Low-noise power design for image clarity.
05Scope of Work
01Hardware Design
02Schematics Entry

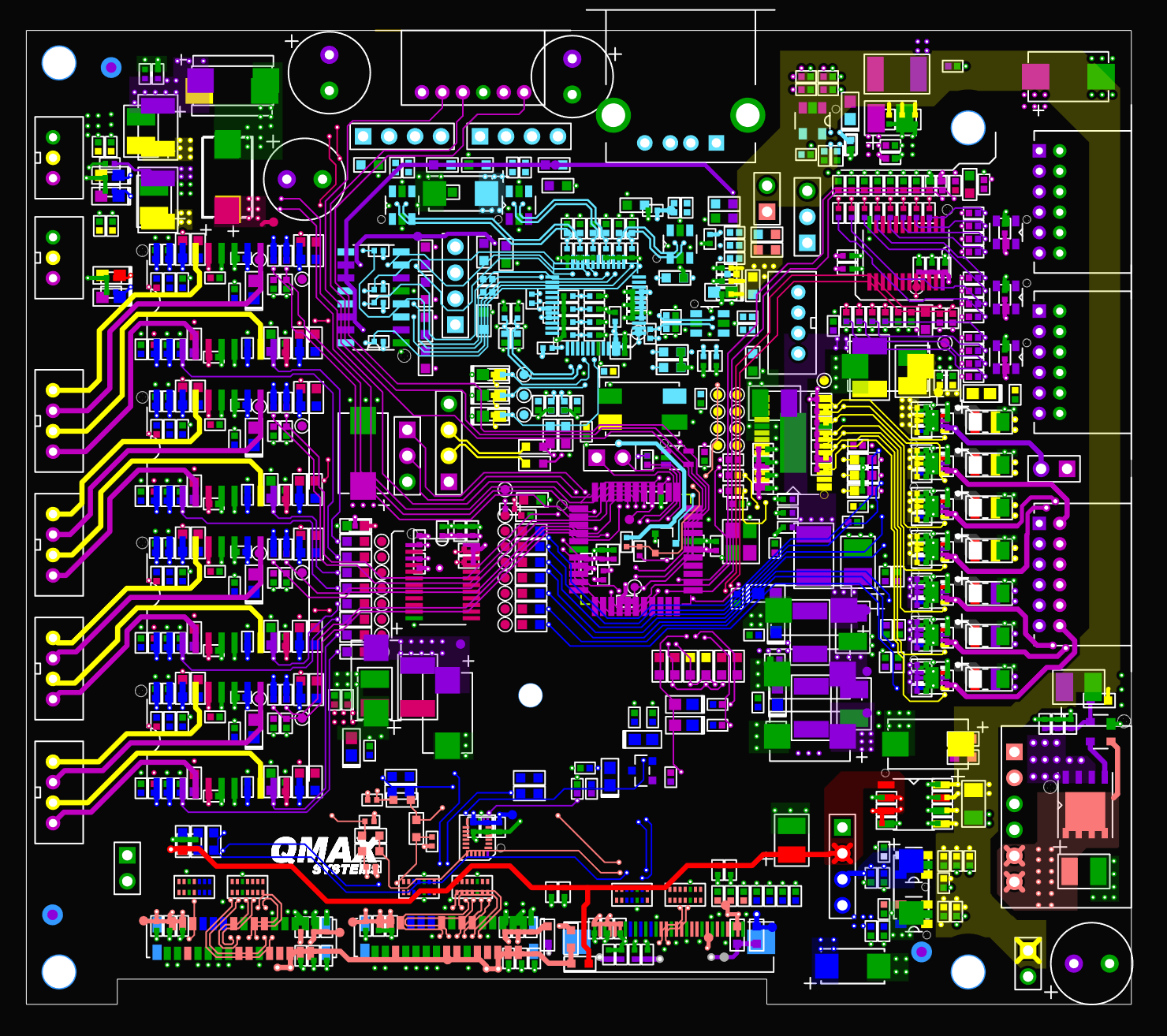

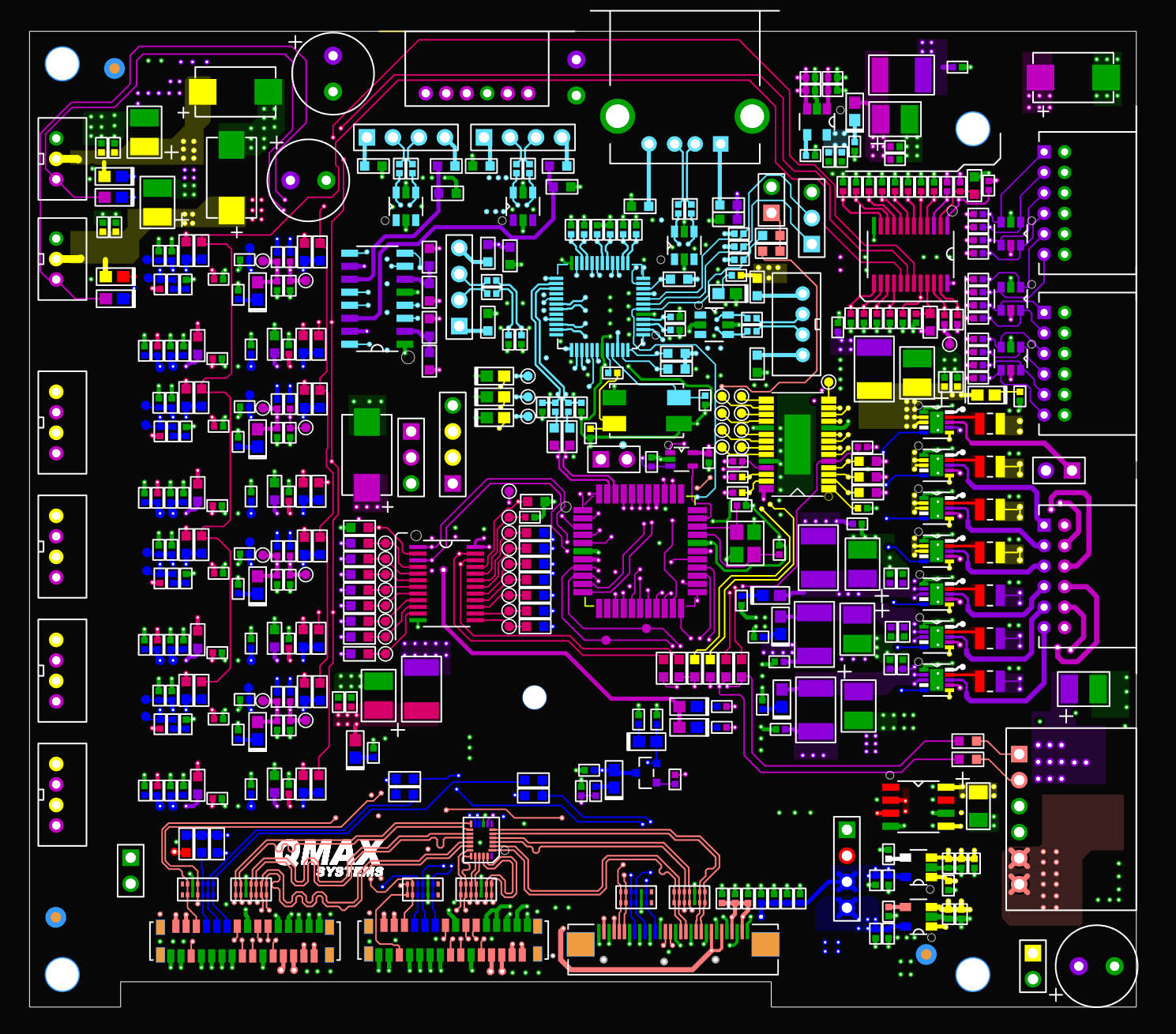

03PCB Layout Design
04PCB Fabrication and Assembly
05Firmware Development
06Board Bring-up and Testing
07Enclosure Design
