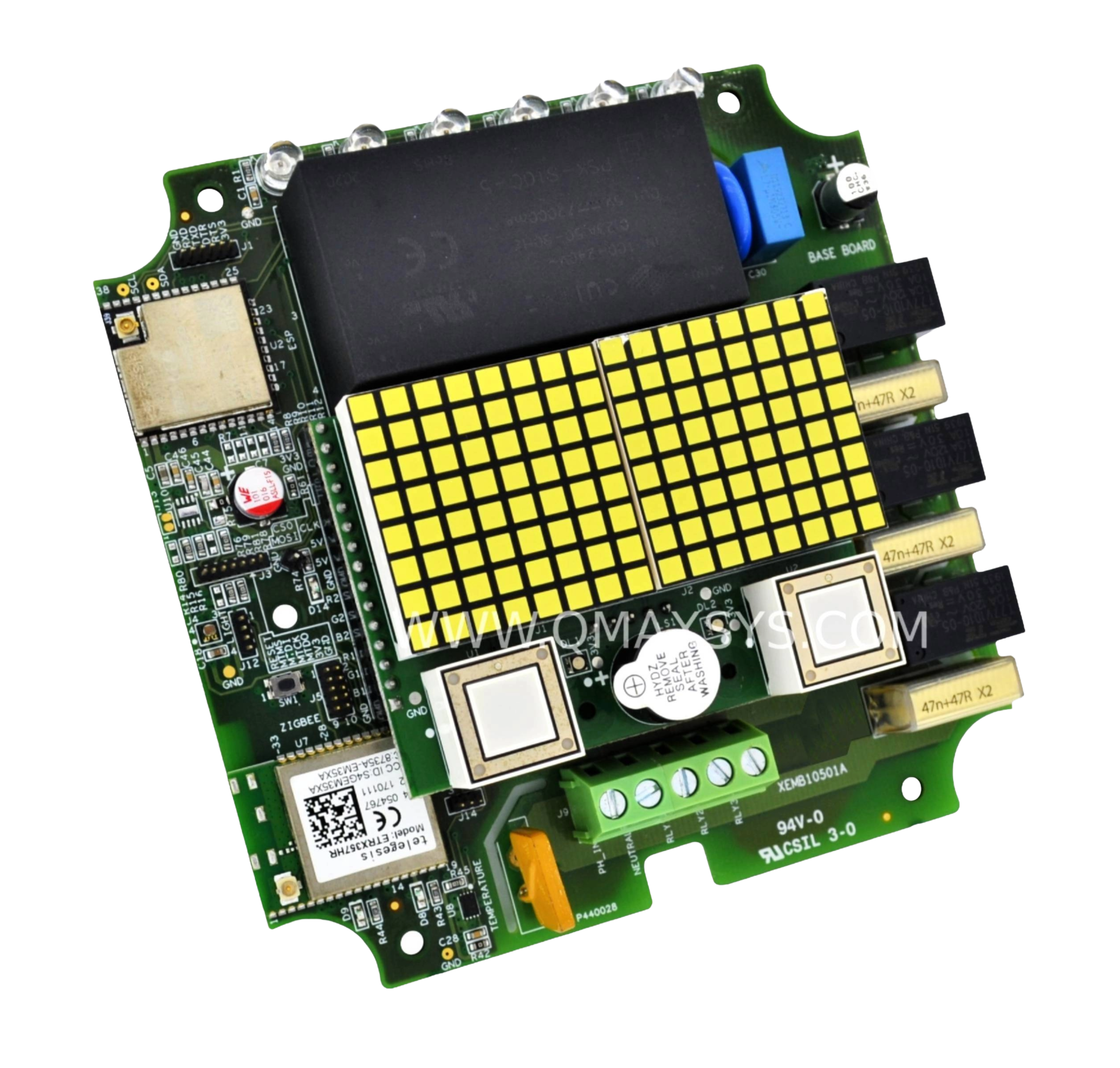

Smart Monitoring System
Click to zoom
1 / 301Highlights
- ARM Cortex-M7 Processor
- FreeRTOS Real-Time Operating System
- Multi-sensor Environmental Monitoring
- L2 Managed Ethernet Switch
- Industrial Grade Components
- Remote Dashboard and Alerts
02Project Overview
A smart environmental monitoring system powered by an ARM Cortex-M7 processor running FreeRTOS. The system continuously tracks temperature, humidity, air quality, and other environmental parameters across multiple zones. An integrated L2 managed switch enables daisy-chained sensor nodes over a single Ethernet backbone, achieving 40 % better power efficiency through intelligent duty-cycling and POE-powered deployment.
03Key Components
ARM Cortex-M7 ProcessorL2 Managed Ethernet Switch ICIndustrial Ethernet PHYPrecision Environmental Sensors (Temp, Humidity, CO₂)
04Salient Features
- Real-time multi-zone environmental monitoring.
- FreeRTOS for deterministic sensor polling.
- L2 managed switch for daisy-chained sensor nodes.
- 40 % power efficiency through intelligent duty-cycling.
- Web-based dashboard for remote monitoring.
- Configurable alert thresholds via SNMP.
- Industrial operating temperature range.
- DIN rail or wall-mount installation.
- LED status indicators for each channel.
05Scope of Work
01System Requirements Analysis
02Hardware Architecture Design
03RTOS Implementation
04Sensor Integration and Calibration
05Network Stack Development
06EMC/EMI Compliance Testing
07Industrial Certification
