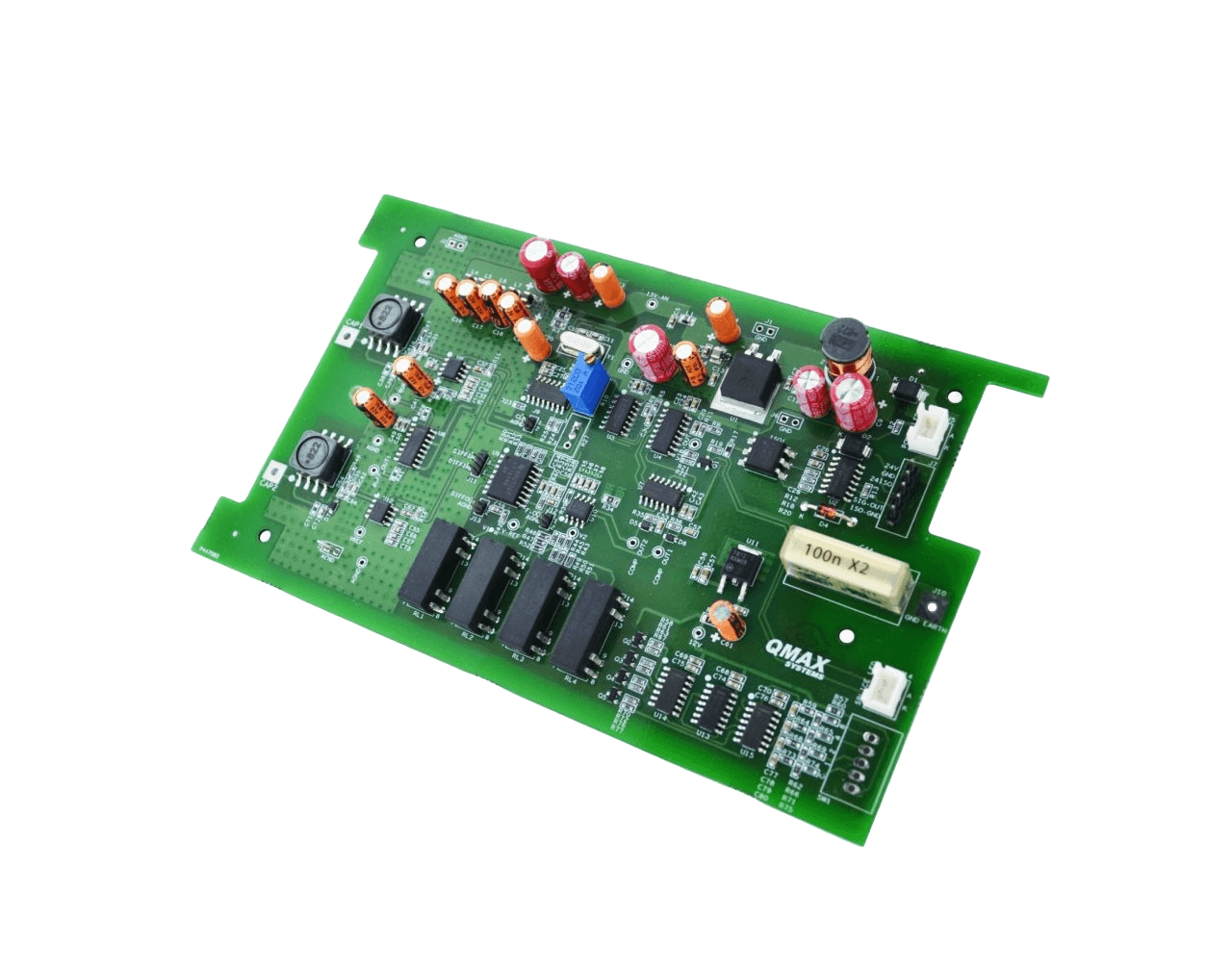

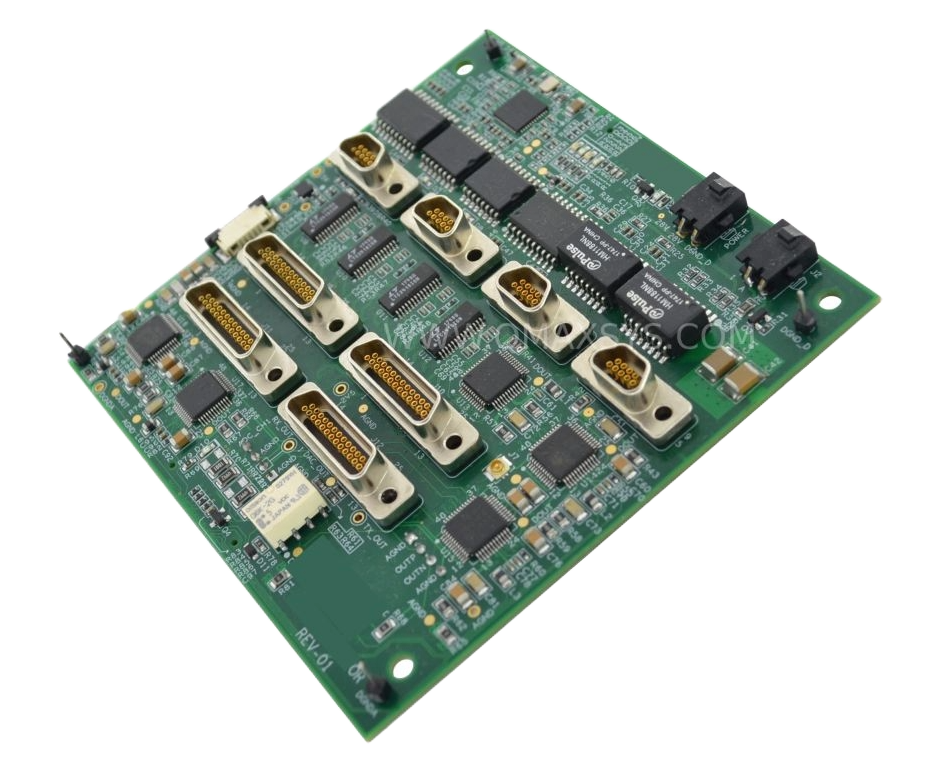

Robotics Motion Controller
Click to zoom
1 / 301Highlights
- High-precision motion control
- Real-time servo control
- Trajectory planning
- Multiple kinematic configurations
- 16-axis capability
- ±0.1mm accuracy
02Project Overview
High-precision motion controller for industrial robotic arms with real-time servo control and trajectory planning. Supports multiple kinematic configurations.
03Key Components
Real-time Control ProcessorMulti-axis Servo DriversMotion Planning EngineEncoder InterfaceIndustrial NetworkingEmergency Stop Interface
04Salient Features
- Support for up to 16 simultaneous axes.
- 4 kHz control loop refresh rate.
- ±0.1mm trajectory accuracy.
- Multiple kinematic configuration support.
- Real-time trajectory planning.
- Safety-certified emergency stop circuits.
05Scope of Work
01Motion Control Algorithm Development
02Servo Driver Integration
03Trajectory Planning Implementation
04Hardware Design
05Testing and Validation
06Safety Certification
