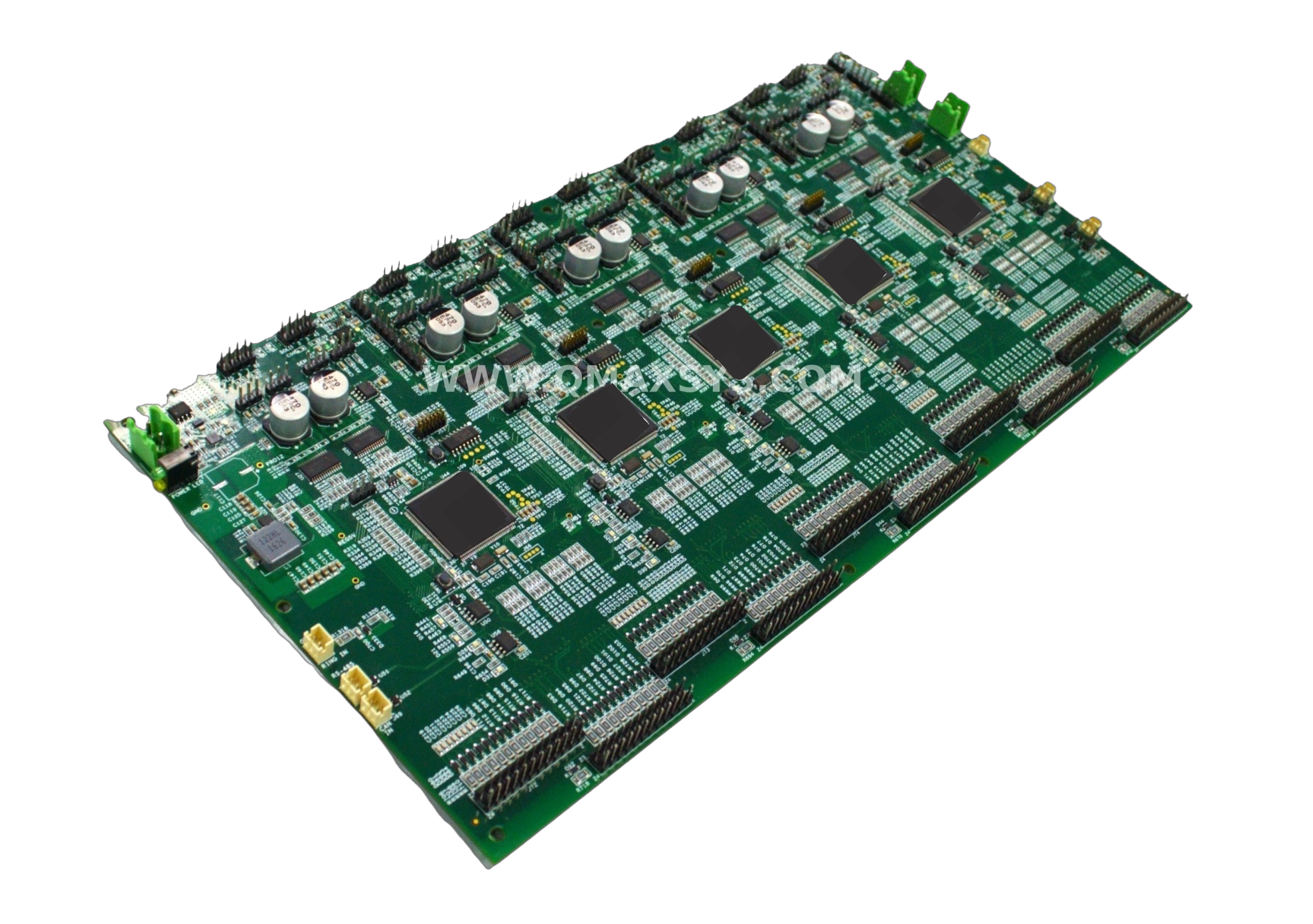

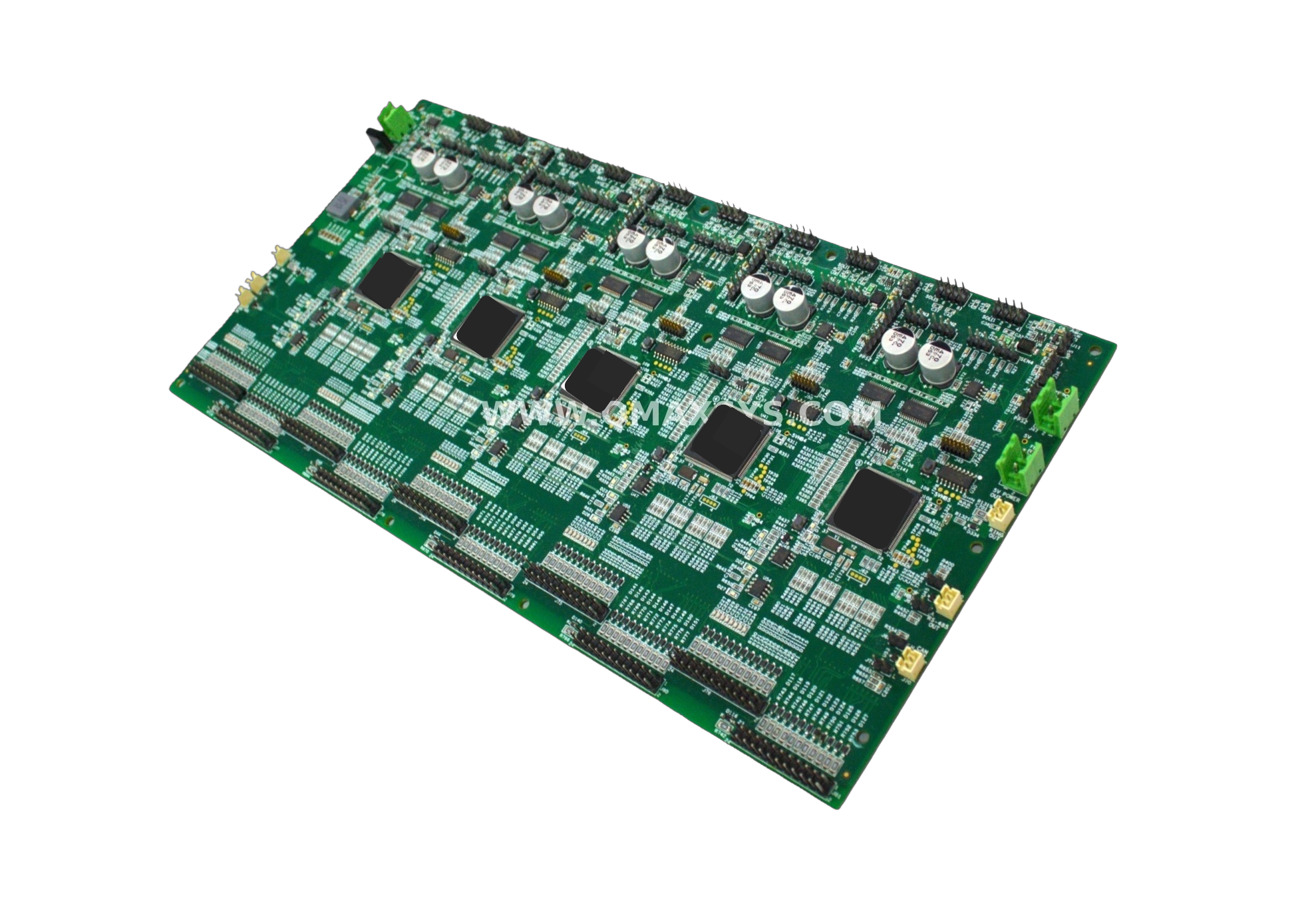

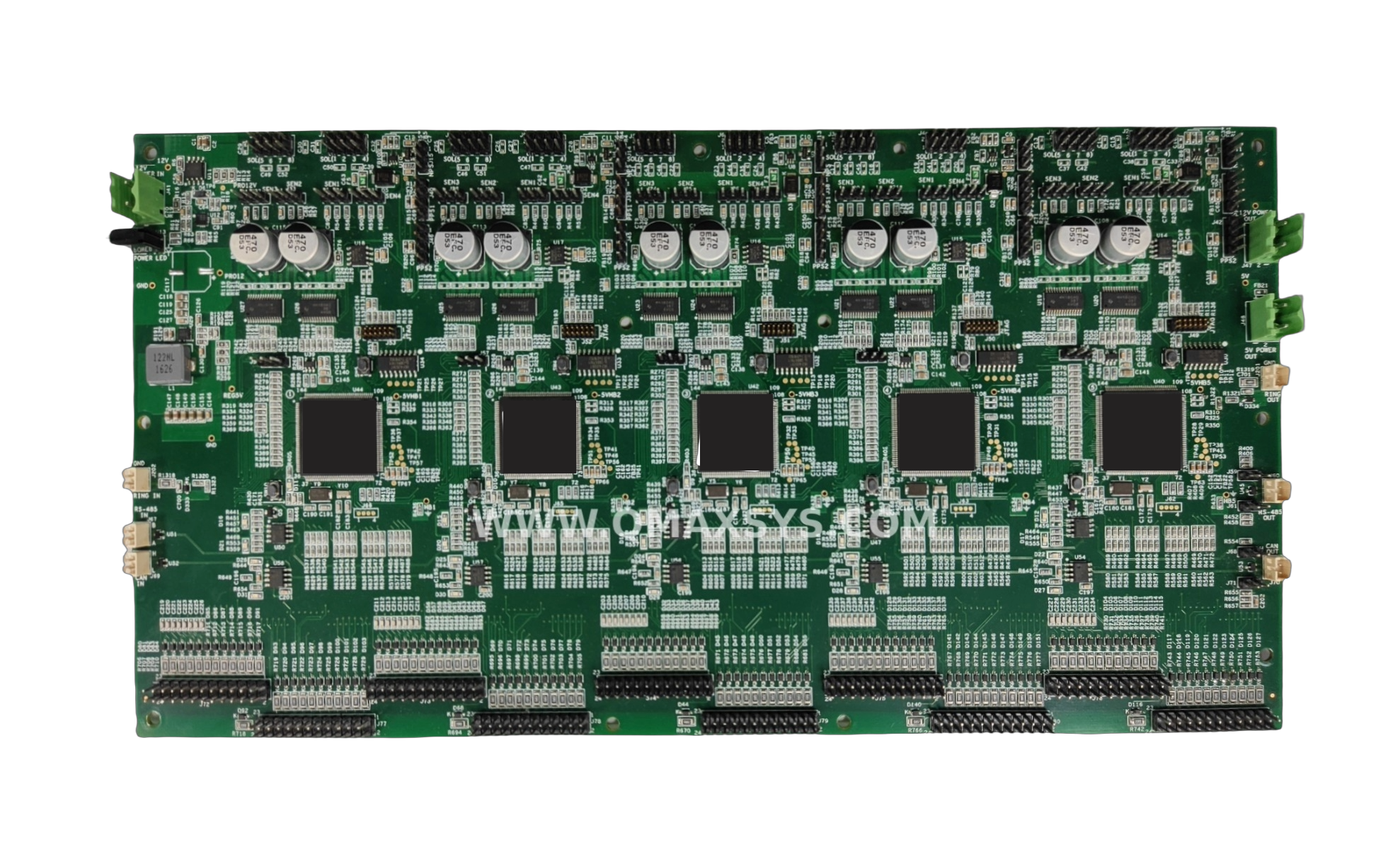

1 / 601Highlights
- FPGA Spartan-6 Based Multi-channel IO
- High-speed ADC / DAC Sampling
- Fiber Optic Interface
- Hardware / Firmware Design and Development
- PCB Design and Layout
- ATE System Integration
02Project Overview
A versatile Multi IO card designed for Automated Test Equipment (ATE) platforms, built around a Xilinx Spartan-6 FPGA. The card provides multiple high-speed analog and digital IO channels with fiber optic connectivity for noise-immune data transfer. With 12x faster sampling rates than conventional solutions, it enables precise stimulus generation and measurement capture across a wide range of device-under-test scenarios.
03Key Components
Xilinx Spartan-6 FPGAAnalog Devices High-speed ADCsTexas Instruments DAC and Power ManagementFiber Optic Transceiver Module
04Salient Features
- FPGA-based parallel IO processing.
- High-speed ADC sampling for precision measurement.
- Fiber optic interface for noise-immune communication.
- Multi-channel analog and digital IO.
- Configurable test patterns and stimulus generation.
- Real-time data acquisition and streaming.
- Modular design for integration with ATE racks.
- 12x faster sampling rate than conventional cards.
- Low-latency deterministic IO response.
05Scope of Work
01System Architecture Design
02FPGA Development and Programming
03Analog Circuit Design
04PCB Layout and Design
05Firmware Development
06Testing and Validation
07ATE Integration Support
